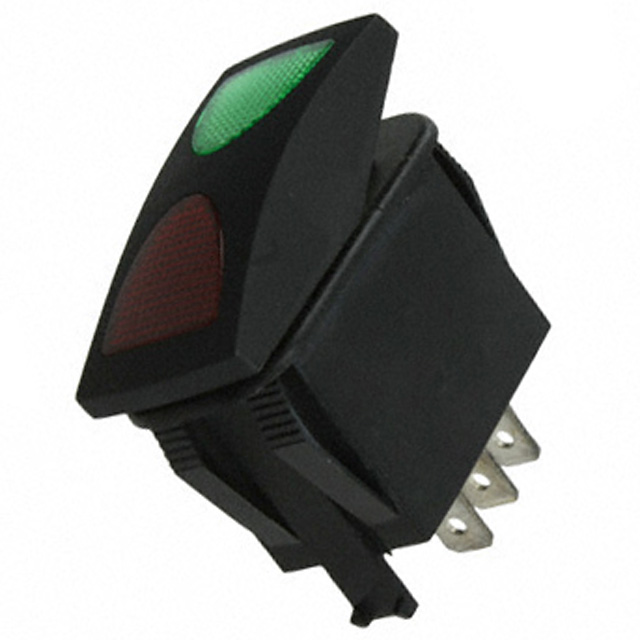

GRB292D301BBRG1
ActiveCW Industries
SWITCH ROCKER SPDT 21A 14V
Deep-Dive with AI
Search across all available documentation for this part.
GRB292D301BBRG1
ActiveCW Industries
SWITCH ROCKER SPDT 21A 14V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB292D301BBRG1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 21 A |
| Illumination Type, Color | Green/Red, LED |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.79 | |
| 10 | $ 12.77 | |||
| 25 | $ 12.04 | |||
| 50 | $ 11.51 | |||
| 100 | $ 11.01 | |||
| 250 | $ 10.38 | |||
| 500 | $ 9.92 | |||
| 1000 | $ 9.49 | |||
Description
General part information
GRB292D Series
Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
