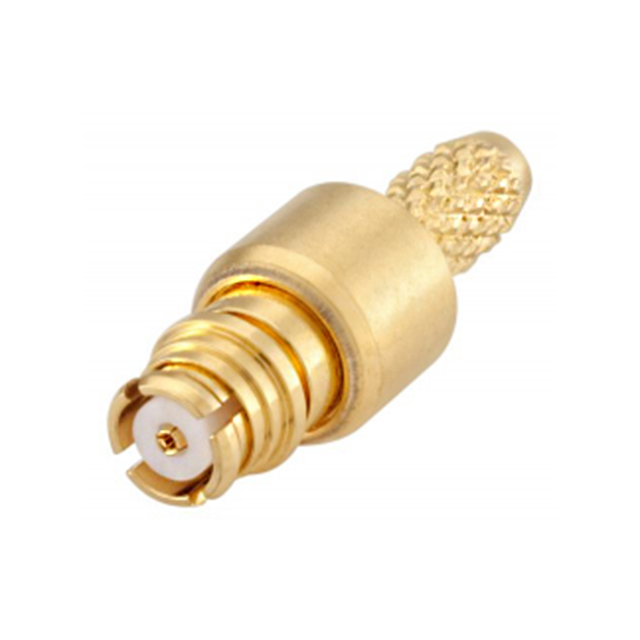

19K102-101L5-NM

Active

Rosenberger

SMP NON MAGNETIC STRAIGHT JACK

Search across all available documentation for this part.

Active

Rosenberger

SMP NON MAGNETIC STRAIGHT JACK

Technical Specifications

Parameters and characteristics for this part

Specification	19K102-101L5-NM

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-178B, 196A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Fastening Type	Mating Cycles	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Shield Termination	Voltage Rating	Contact Termination	Frequency - Max [Max]	Dielectric Material	Center Contact Plating	Center Contact Material	Mounting Type	Body Material	Housing Color	Number of Ports	Impedance	Connector Type
Rosenberger 19K102-101L5-NM	Snap-On	1000	196A RG-178B	155 °C	-65 ░C	Gold	Crimp	335 V	Crimp	26.5 GHz	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	Free Hanging (In-Line)	Beryllium Copper	Gold	1	50 Ohms	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
