G2E146-BF01-35
Activeebm-papst Inc.

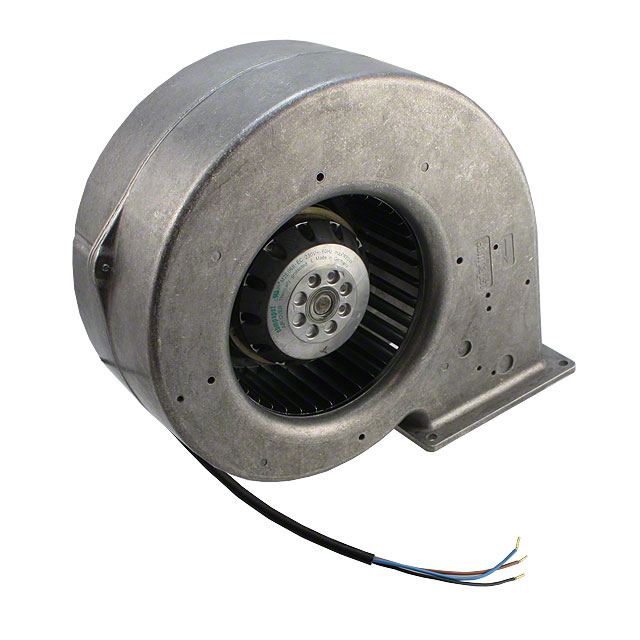

FAN BLWR CENT 226X130MM 230VAC
Deep-Dive with AI
Search across all available documentation for this part.
G2E146-BF01-35
Activeebm-papst Inc.
FAN BLWR CENT 226X130MM 230VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G2E146-BF01-35 |
|---|---|
| Air Flow | 318 CFM |
| Air Flow | 8.9 m³/min |
| Approval Agency | CSA, CCC, UL |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Material - Frame | Aluminum |
| Power (Watts) | 330 W |
| Size / Dimension [diameter] | 126 mm |
| Size / Dimension [x] | 226 mm |
| Size / Dimension [y] | 261 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 8.5 lbs |
| Weight | 3.9 kg |
| Width [y] | 130 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 397.49 | |
| 10 | $ 366.70 | |||
| 25 | $ 361.10 | |||
Description
General part information
G2E146 Series
Fan Blower, Centrifugal 230VAC Rectangular - 226mm L x 261mm H (126mm Dia) Ball 318.0 CFM (8.90m³/min) 3 Wire Leads
