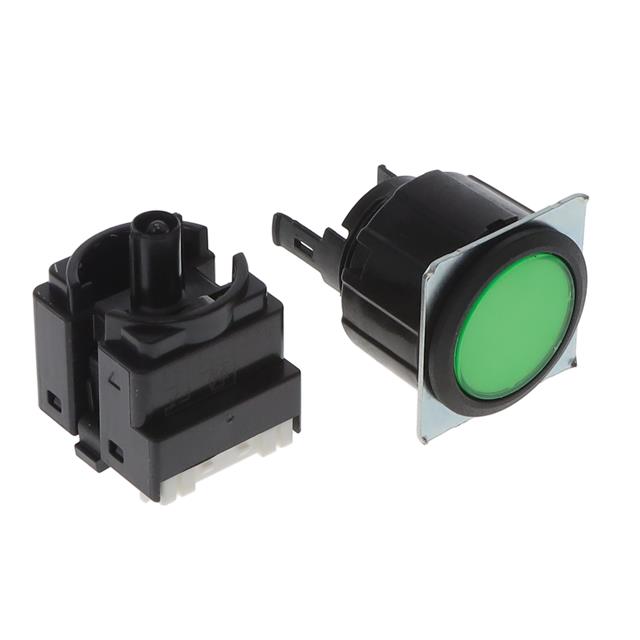

A3UL-TBG-1A1C-5M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3UL-TBG-1A1C-5M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3UL-TBG-1A1C-5M

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Connector
Type	Illuminated, Standard
Voltage Rating - DC	30 V

A3UL-TBG Series

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Circuit	Illumination Voltage (Nominal)	Voltage Rating - DC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Actuator Marking	Switch Function	Termination Style	Type	Color - Actuator/Cap	Ingress Protection	Current Rating (Amps)	Mounting Type	Actuator Type
Omron Electronics Inc-EMC Div A3UL-TBG-1A1C-5M	25.2 mm	1000000 Cycles	SPDT	5 VDC	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP65	100 mA	Panel Mount Front	Button Flush Round
Omron Electronics Inc-EMC Div A3UL-TBG-1A2C-M	25.2 mm	1000000 Cycles	DPDT	5 VDC	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP40	100 mA	Panel Mount Front	Button Flush Round
Omron Electronics Inc-EMC Div A3UL-TBG-3A1C-5M	25.2 mm	1000000 Cycles	SPDT	24 V	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP65	100 mA	Panel Mount Front	Button Flush Round
Omron Electronics Inc-EMC Div A3UL-TBG-2A2C-M	25.2 mm	1000000 Cycles	DPDT	12 VDC	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP40	100 mA	Panel Mount Front	Button Flush Round
Omron Electronics Inc-EMC Div A3UL-TBG-3A2C-M	25.2 mm	1000000 Cycles	DPDT	24 V	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP40	100 mA	Panel Mount Front	Button Flush Round
Omron Electronics Inc-EMC Div A3UL-TBG-3A1C-M	25.2 mm	1000000 Cycles	SPDT	24 V	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP40	100 mA	Panel Mount Front	Button Flush Round
Omron Electronics Inc-EMC Div A3UL-TBG-1A2C-5M	25.2 mm	1000000 Cycles	DPDT	5 VDC	30 V	200000 Cycles	55 °C	-20 C	Green LED	No Marking	On-Mom	Connector	Illuminated Standard	Clear	IP65	100 mA	Panel Mount Front	Button Flush Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.29
		10	$ 31.21
		25	$ 29.76
		50	$ 27.76
		100	$ 26.67
		250	$ 24.86

Description

General part information

A3UL-TBG Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
