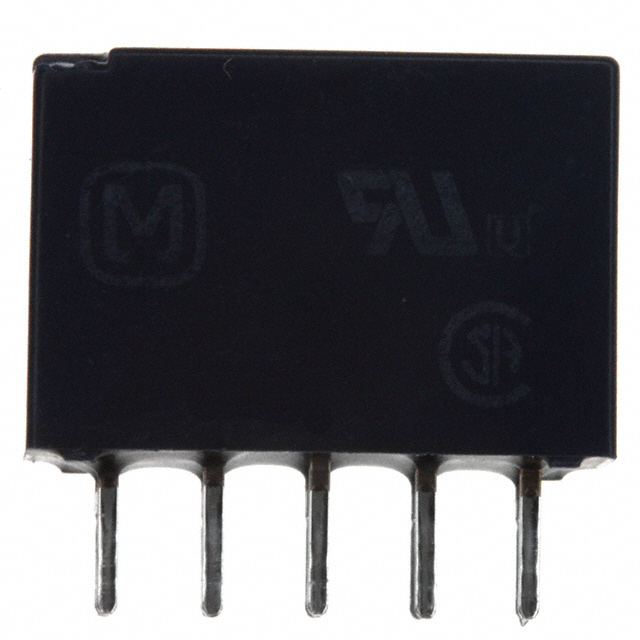

TN2-L2-H-12V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 1A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Standards Chart +2

TN2-L2-H-12V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 1A 12V

Deep-Dive with AI

DocumentsHow to Read Date Codes Standards Chart +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TN2-L2-H-12V

Approval Agency	CSA, UR
Coil Current	16.7 mA
Coil Resistance	720 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	1 A
Load - Max Switching	125 VA, 110 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Operate Time	3 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Fully
Switching Voltage	110 VDC, 125 VAC
Termination Style	PC Pin

TN2-L Series

Part	Operate Time	Approval Agency	Load - Max Switching	Coil Resistance	Coil Current	Coil Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Contact Material	Must Operate Voltage	Seal Rating	Coil Voltage	Contact Form	Contact Rating (Current)	Release Time	Termination Style	Switching Voltage
Panasonic Electric Works TN2-L2-9V	3 ms	CSA UR	110 W 125 VA	405 Ohms	22.2 mA	Latching Dual Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	6.75 VDC	Sealed - Fully	9 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L2-H-6V	3 ms	CSA UR	110 W 125 VA	180 Ohms	33.3 mA	Latching Dual Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	4.5 VDC	Sealed - Fully		DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L2-24V	3 ms	CSA UR	110 W 125 VA	1.92 kOhms		Latching Dual Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	18 VDC	Sealed - Fully	24 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L2-H-12V	3 ms	CSA UR	110 W 125 VA	720 Ohms	16.7 mA	Latching Dual Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	9 VDC	Sealed - Fully	12 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L2-5V	3 ms	CSA UR	110 W 125 VA	125 Ohms	40 mA	Latching Dual Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	3.75 VDC	Sealed - Fully	5 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L-4.5V	3 ms	CSA UR	110 W 125 VA	203 Ohms	22.2 mA	Latching Single Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	3.38 VDC	Sealed - Fully	4.5 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L2-12V	3 ms	CSA UR	110 W 125 VA	720 Ohms	16.7 mA	Latching Dual Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	9 VDC	Sealed - Fully	12 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L-12V-3	3 ms	CSA UR	110 W 125 VA	1440 Ohms	8.3 mA	Latching Single Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	9 VDC	Sealed - Fully	12 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L-H-5V	3 ms	CSA UR	110 W 125 VA	250 Ohms	20 mA	Latching Single Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	3.75 VDC	Sealed - Fully	5 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
Panasonic Electric Works TN2-L-24V	3 ms	CSA UR	110 W 125 VA	3.84 kOhms	6.3 mA	Latching Single Coil	Through Hole	-40 °C	70 °C	General Purpose	Gold (Au) Silver (Ag)	18 VDC	Sealed - Fully	24 VDC	DPDT (2 Form C)	1 A	3 ms	PC Pin	110 VDC 125 VAC
