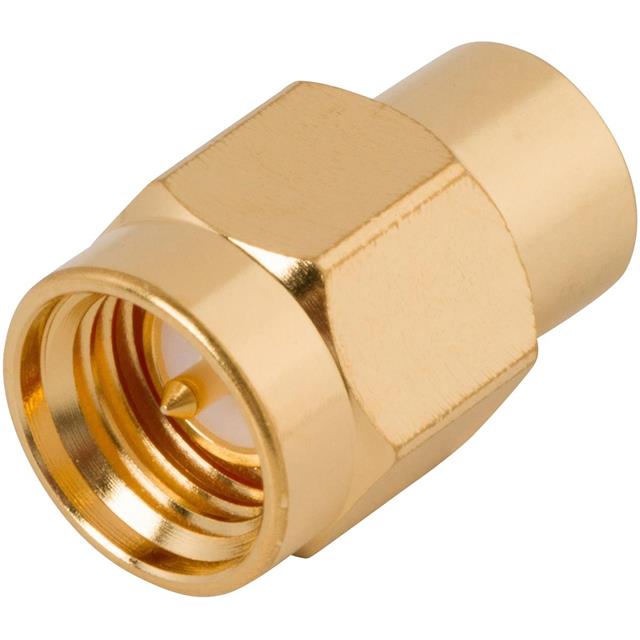

8018-6005

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	8018-6005

Body Finish	Gold
Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Dielectric Material	Contact Finish	Mounting Type	Body Finish	Frequency - Max [Max]	Impedance	Contact Material	Body Material	Connector Type	Connector Style
Amphenol SV Microwave 8018-6005	Polytetrafluoroethylene (PTFE)	Gold	Cap Free Hanging	Gold	18 GHz	50 Ohms	Beryllium Copper	Stainless Steel	Male Pin Plug	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
