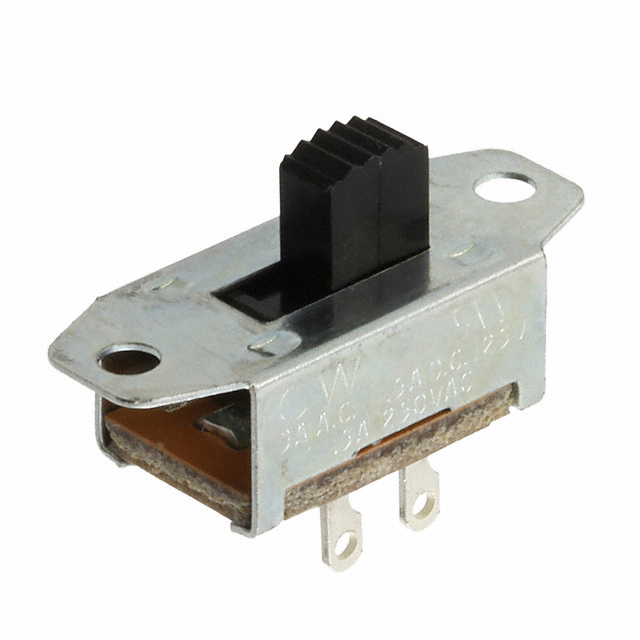

GF-123-3011
ActiveCW Industries
SWITCH SLIDE SPST 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GF-123-3011
ActiveCW Industries
SWITCH SLIDE SPST 3A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-123-3011 |
|---|---|
| Actuator Length [x] | 5.08 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | SPST |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 500 mA, 3 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-Off |
| Switch Travel | 3.61 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.58 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.42 | |||
| 100 | $ 1.23 | |||
| 250 | $ 1.12 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.97 | |||
| 2500 | $ 0.88 | |||
| 5000 | $ 0.82 | |||
Description
General part information
GF-123 Series
Slide Switch SPST Panel Mount
Documents
Technical documentation and resources
No documents available
