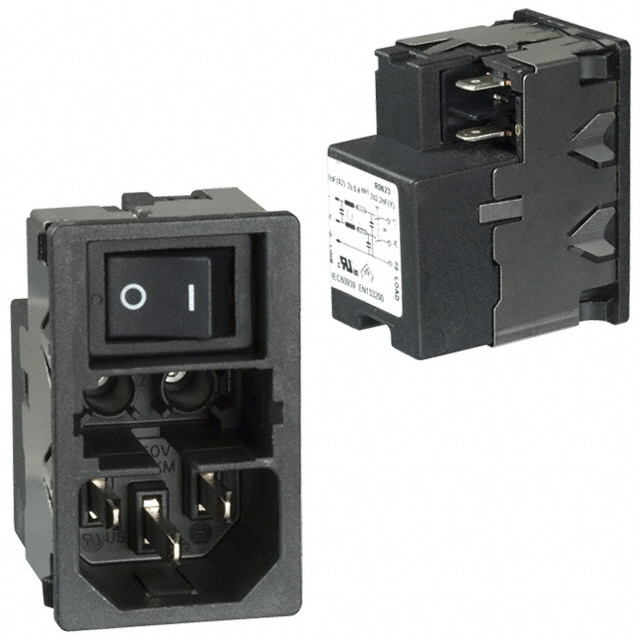

KMF1.1191.11 - KMF1.1191.11

KMF1.1191.11

Active
SCHURTER Inc.

KMF, MOUNTING: FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14, PR

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENTechnical Data Sheet EN+3
KMF1.1191.11 - KMF1.1191.11

KMF1.1191.11

Active
SCHURTER Inc.

KMF, MOUNTING: FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14, PR

Deep-Dive with AI

Documents3D Product Image ENTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationKMF1.1191.11
Accomodates a FuseTrue
Approval AgencyCCC, ENEC, cULus
Connector StyleIEC 320-C14
Connector TypeReceptacle, Male Blades - Module
Current Rating - Appliance Inlet10 A
Current Rating - Filter10 A
FeaturesShielded
Filter TypeFiltered (EMI, RFI) - Commercial
Fuse Holder, DrawerDrawer Sold Separate
Ingress ProtectionIP40
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Snap-In
Panel Cutout Dimensions [x]28.8 mm
Panel Cutout Dimensions [y]47.8 mm
Panel Thickness [Max]2.5 mm
Panel Thickness [Max]0.098 in
Panel Thickness [Min]1 mm
Panel Thickness [Min]0.039 in
Switch FeaturesSwitch On-Off
Termination0.189 ", 4.8 mm
TerminationQuick Connect
Voltage Rating - Appliance Inlet250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 23.32
20$ 29.89
40$ 28.47
60$ 27.66
100$ 26.69
260$ 24.95
NewarkEach 1$ 22.92

Description

General part information

KMF1.1191 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
