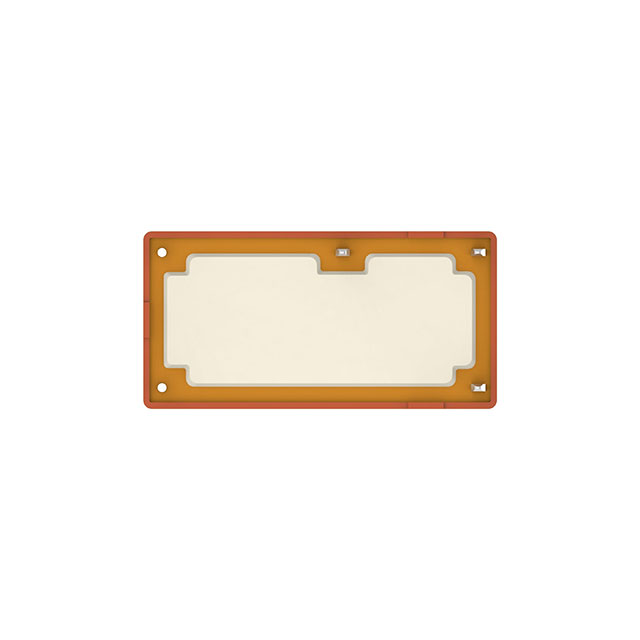

7-1415543-1

Active

TE Connectivity Potter & Brumfield Relays

PE515012

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

PE515012

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Coil Insulation	Seal Rating	Must Operate Voltage	Must Release Voltage	Mounting Type	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Voltage	Contact Rating (Current)	Approval Agency	Switching Voltage [Max]	Load - Max Switching	Contact Material	Termination Style	Coil Type	Relay Type	Coil Current	Coil Resistance
TE Connectivity Potter & Brumfield Relays 2-1415543-5	8 ms	Class F	Sealed - Fully	3.7 VDC	0.5 VDC	Through Hole	SPDT (1 Form C)	85 °C	-40 °C	10 ms	5 VDC	10 A	CQC CSA cURus VDE	400 VAC	4000 VA	Gold (Au) Silver Nickel (AgNi)	PC Pin	Non Latching	General Purpose	50 mA	100 Ohms
TE Connectivity Potter & Brumfield Relays 7-1415543-1	8 ms		Sealed - Fully	9 VDC		Through Hole	SPDT (1 Form C)	85 °C	-40 °C	8 ms	12 VDC	5 A	cURus VDE	400 VAC	2000 VA	Gold (Au) Silver Nickel (AgNi)	PC Pin	Non Latching	General Purpose	17.5 mA	685 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.62

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole

Technical documentation and resources

No documents available
