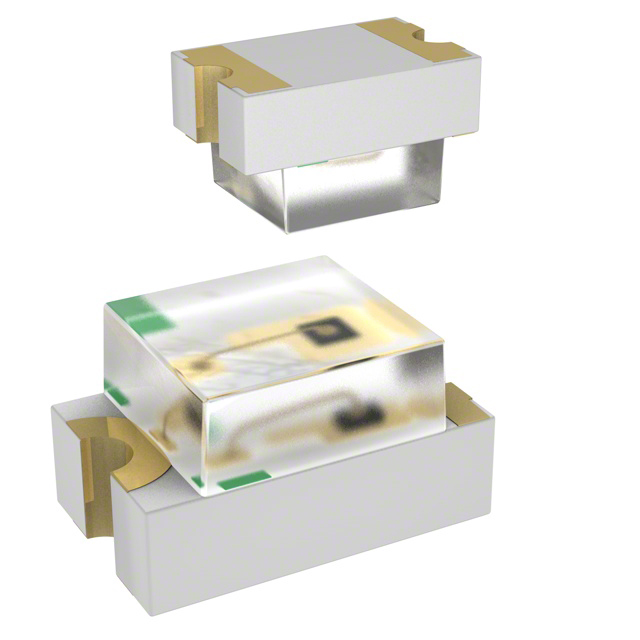

IR17-21C/TR8
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 65MA 0805
Deep-Dive with AI
Search across all available documentation for this part.
IR17-21C/TR8
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 65MA 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IR17-21C/TR8 |
|---|---|
| Current - DC Forward (If) (Max) | 65 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 0805 |
| Radiant Intensity (Ie) Min @ If [Min] | 0.2 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.10 | |||
| Tape & Reel (TR) | 4000 | $ 0.10 | ||
| 8000 | $ 0.10 | |||
| 12000 | $ 0.09 | |||
| 28000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
IR17-21 Series
Infrared (IR) Emitter 940nm 1.2V 65mA 0.2mW/sr @ 20mA 120° 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
