851-91-010-30-002000

Active

Mill-Max Manufacturing Corp.

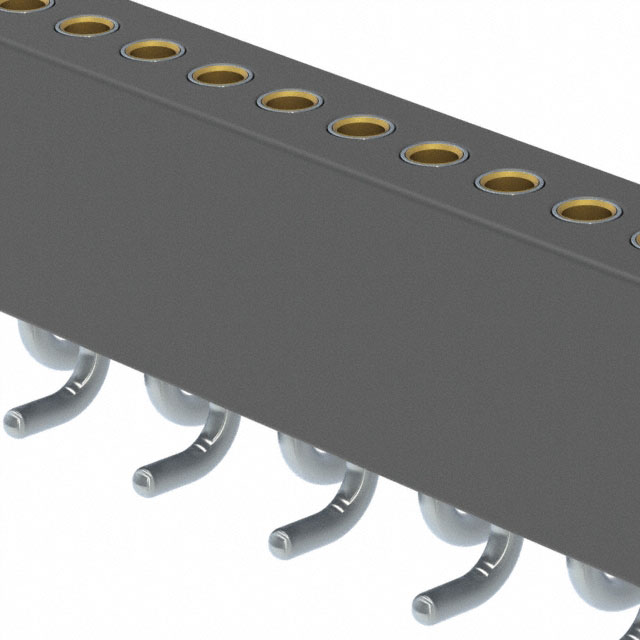

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

851-91-010-30-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	851-91-010-30-002000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	3.78 mm
Insulation Height [z]	0.149 "
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

851-91 Series

...

Part	Contact Shape	Contact Material	Number of Positions	Number of Rows	Insulation Material	Connector Type	Mounting Type	Termination	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Type	Insulation Height [z]	Insulation Height [z]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post
Mill-Max Manufacturing Corp. 851-91-010-30-002000	Circular	Brass Alloy	10	1	Polyamide (PA46) Nylon 4/6	Receptacle	Surface Mount	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket	3.78 mm	0.149 "
Mill-Max Manufacturing Corp. 851-91-018-10-002000	Circular	Beryllium Copper	18	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.185 in	4.7 mm	2.92 mm	0.115 in	3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-027-10-002000	Circular	Beryllium Copper	27	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.185 in	4.7 mm	2.92 mm	0.115 in	3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-005-30-001000	Circular	Beryllium Copper		1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Surface Mount	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.207 in	5.25 mm			3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-044-20-001000	Circular	Beryllium Copper	44	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole Right Angle	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.087 "	2.2 mm	3 mm	0.118 in	3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-049-30-001000	Circular	Beryllium Copper	49	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Surface Mount	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.207 in	5.25 mm			3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-045-10-001000	Circular	Beryllium Copper	45	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.161 in	4.1 mm	0.099 in		3 A	UL94 V-0	-55 °C	125 °C	2.51 mm
Mill-Max Manufacturing Corp. 851-91-020-20-001000	Circular	Beryllium Copper	20	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole Right Angle	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.087 "	2.2 mm	3 mm	0.118 in	3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-050-20-001000	Circular	Beryllium Copper	50	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole Right Angle	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.087 "	2.2 mm	3 mm	0.118 in	3 A	UL94 V-0	-55 °C	125 °C
Mill-Max Manufacturing Corp. 851-91-024-10-002000	Circular	Beryllium Copper	24	1	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Through Hole	Solder	Tin-Lead	Push-Pull	10 çin	0.25 çm	Black	All	200 µin	5.08 µm	0.05 in	1.27 mm	Gold	Female Socket			0.185 in	4.7 mm	2.92 mm	0.115 in	3 A	UL94 V-0	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.20

Description

General part information

851-91 Series

10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
