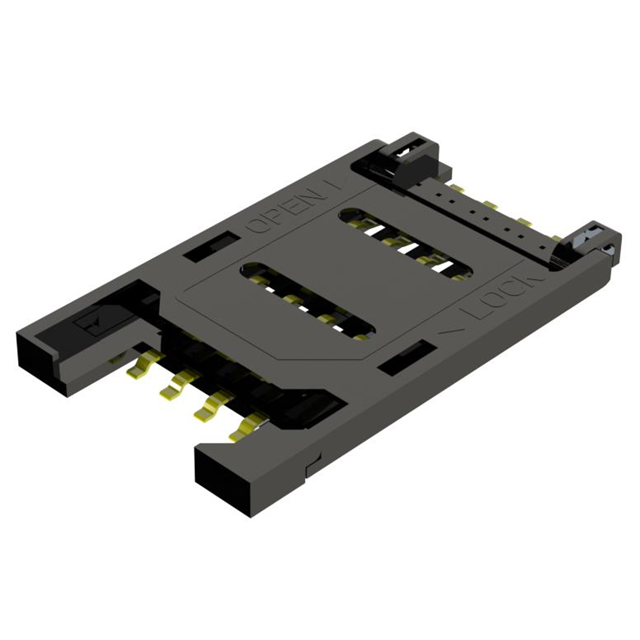

SIMS486-22-1-2-F-LF
ActiveMajor League Electronics
SIM SOCKETS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIMS486-22-1-2-F-LF |
|---|---|
| Card Type | SIM Card |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Height Above Board | 0.087 in |
| Height Above Board | 2.21 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.94 | |
Description
General part information
SIMS486 Series
6 Position Card Connector SIM Card Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
No documents available
