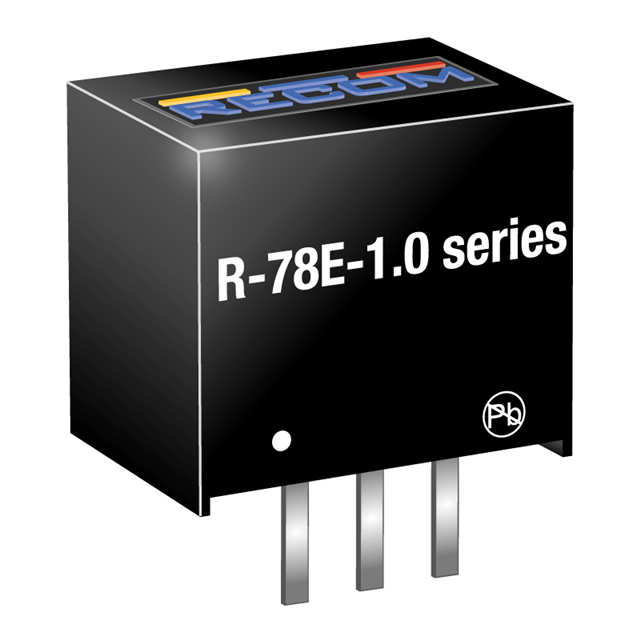

R-78E12-1.0/X9

Active

RECOM Power

DC/DC CONVERTER, ITE, 1 OUTPUT, 12 W, 12 V, 1 A, R-78E SERIES

Search across all available documentation for this part.

Active

RECOM Power

DC/DC CONVERTER, ITE, 1 OUTPUT, 12 W, 12 V, 1 A, R-78E SERIES

Technical Specifications

Parameters and characteristics for this part

Non-Isolated DC/DC Converters 8-28Vin 5V 1.0A THRU

Part	Type	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Features	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1
RECOM Power R-78E12-0.5	Linear Regulator Replacement	1	95 %	85 °C	-40 °C	ITE (Commercial)	SCP	6 W	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	28 V	3-SIP Module	500 mA	Through Hole	15 V	12 V
RECOM Power R-78E3.3-1.0	Linear Regulator Replacement	1	91 %	85 °C	-40 °C	ITE (Commercial)	SCP	3 W	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	28 V	3-SIP Module	1 A	Through Hole	7 V	3.3 V
RECOM Power R-78E5.0-0.5	Linear Regulator Replacement	1	92 %	85 °C	-40 °C	ITE (Commercial)	SCP	3 W	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	28 V	3-SIP Module	500 mA	Through Hole	7 V	5 V
RECOM Power R-78E15-0.5	Linear Regulator Replacement	1	95 %	85 °C	-40 °C	ITE (Commercial)	SCP	8 W	0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	28 V	3-SIP Module	500 mA	Through Hole	18 V	15 V
RECOM Power R-78E12-1.0/X9	Non-Isolated PoL Module	1		85 °C	-40 °C	ITE (Commercial)			0.46 in	10.4 mm	0.33 in	8.5 mm	0.41 "	11.6 mm	27 V	3-SIP Module	1 A	Through Hole	15 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated DC/DC Converters 8-28Vin 5V 1.0A THRU
