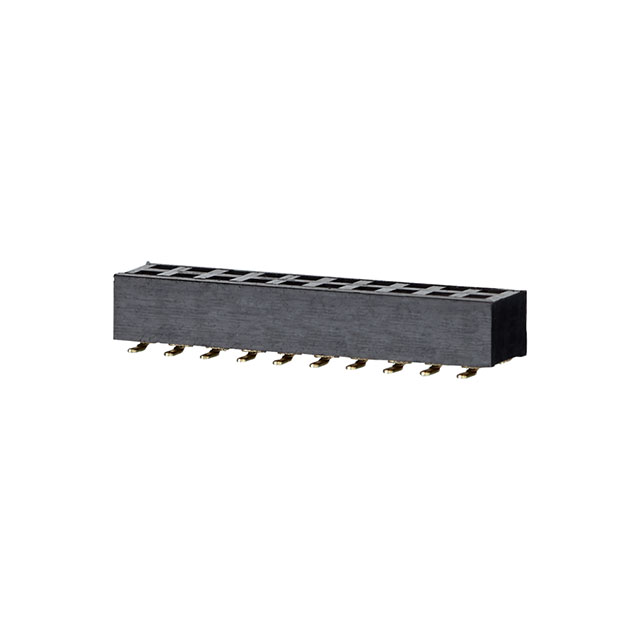

FM20B08VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Technical Specifications

Parameters and characteristics for this part

Specification	FM20B08VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Ingress Protection	IP00
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Material	Number of Rows	Ingress Protection	Insulation Height	Insulation Height	Insulation Color	Contact Shape	Number of Positions	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Connector Type	Termination	Contact Type	Number of Positions Loaded
METZ CONNECT USA Inc. FM20B08VBDN	0.05 in	1.27 mm	Flash	Push-Pull	Copper Alloy	2	IP00	0.084 in	2.14 mm	Black	Square	16	Gold	-40 °C	105 ░C	Polyamide (PA6) Nylon 6	0.05 in	1.27 mm	Surface Mount	Receptacle	Solder	Female Socket	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
