3410.0021.04

Active

SCHURTER Inc.

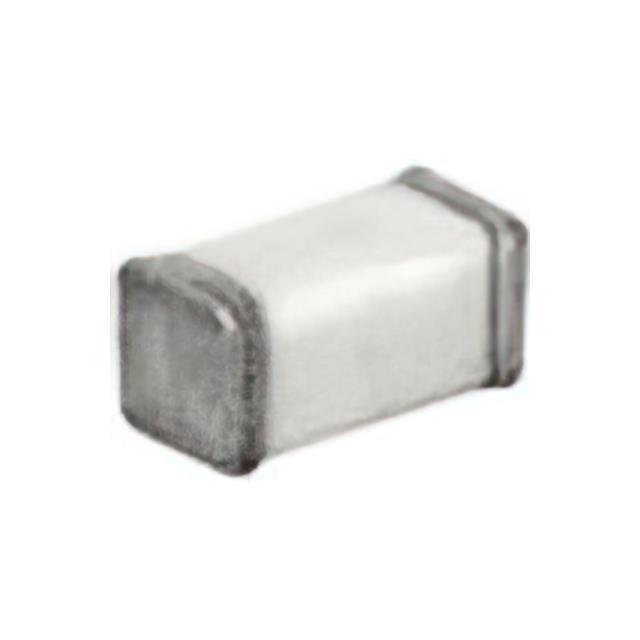

FUSE BRD MT 200MA 125VAC/VDC SMD

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MT 200MA 125VAC/VDC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	3410.0021.04

Breaking Capacity @ Rated Voltage	300 A, 50 A
Current Rating (Amps)	0.2 A
DC Cold Resistance	1.02 Ohms
Fuse Type	Board Mount
Melting I˛t	0.0008
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	0.126 in
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.55 mm
Size / Dimension [y]	0.061 in
Size / Dimension [z]	1.55 mm
Size / Dimension [z]	0.061 "
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	DC Cold Resistance	Melting I˛t	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Response Time	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Fuse Type	Voltage Rating - AC	Voltage Rating - DC	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 3410.0021.01	1.02 Ohms	0.0008	0.2 A	-55 °C	150 °C	Surface Mount	2-SMD Square End Block	Fast Blow	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	Board Mount	125 V	125 VDC	50 A 300 A
SCHURTER Inc. 3410.0021.04	1.02 Ohms	0.0008	0.2 A	-55 °C	150 °C	Surface Mount	2-SMD Square End Block	Fast Blow	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	Board Mount	125 V	125 VDC	50 A 300 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 2.02

General part information

200 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
