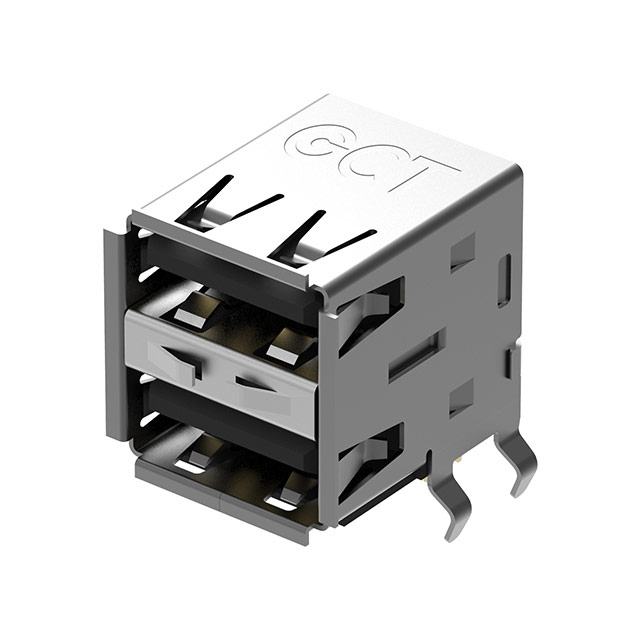

USB1035-GF-P-0-B-B

Active

GCT

USB A SKT, DUAL TOP TH R/A, GF,

Search across all available documentation for this part.

Active

GCT

USB A SKT, DUAL TOP TH R/A, GF,

Technical Specifications

Parameters and characteristics for this part

Specification	USB1035-GF-P-0-B-B

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	8
Number of Ports	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Steel (SPCC)
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Insulation Color	Connector Type	Number of Contacts	Gender	Mounting Type	Current Rating (Amps)	Contact Finish	Termination	Shell/Shielding Material	Shielding	Specifications	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Mating Cycles	Material Flammability Rating	Mounting Feature
GCT USB1035-GF-P-0-B-B	Black	Stacked USB-A (USB TYPE-A)	8	Receptacle	Through Hole Right Angle	1.5 A	Gold	Solder	Steel (SPCC)	Shielded	USB 2.0	30 V	85 °C	-40 °C	2	1500	UL94 V-0	Horizontal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Through Hole, Right Angle
