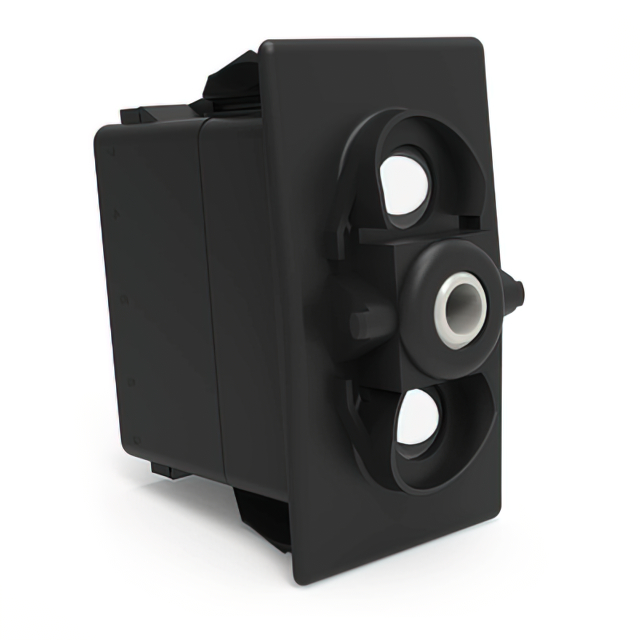

VLD2U66B-00000-000 - V1D2G66B-00000-000

VLD2U66B-00000-000

Active
Carling Technologies

ROCKER SWITCHES CARLING TECHNOLOGIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
VLD2U66B-00000-000 - V1D2G66B-00000-000

VLD2U66B-00000-000

Active
Carling Technologies

ROCKER SWITCHES CARLING TECHNOLOGIES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationVLD2U66B-00000-000
Actuator MarkingVaries by Cap
Actuator TypeActuator Arm, Cap Required - Illuminated
Approval AgencyUL, VDE, CSA
CircuitDPDT
Current Rating (Amps)20 A
Electrical Life100000 Cycles
Illumination Type, ColorIncandescent
Illumination Voltage (Nominal)12 VAC/DC
Ingress ProtectionIP66/IP68
Mechanical Life100000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Panel Cutout Dimensions [x]36.83 mm
Panel Cutout Dimensions [y]21.08 mm
Switch FunctionMom-Off-Mom
Termination StyleQuick Connect - 0.250" (6.3mm)
Voltage Rating - DC12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 25.65
10$ 22.13
25$ 20.87
SagerN/A 1$ 24.02
8$ 21.99
20$ 20.28
40$ 18.16
112$ 11.76
277$ 9.21

Description

General part information

VLD2U66B Series

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Document
