PPTC082LJBN-RC

Active

Sullins Connector Solutions

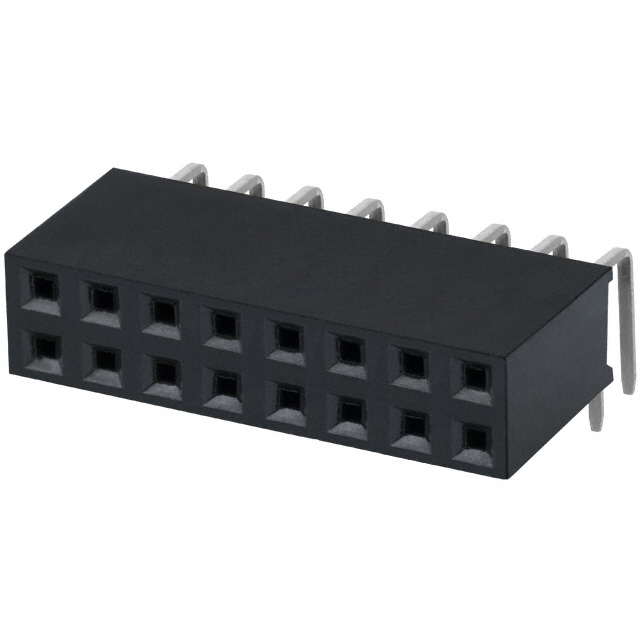

CONN HDR 16POS 0.1 TIN PCB R/A

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 16POS 0.1 TIN PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC082LJBN-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Contact Shape	Mounting Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post [x]	Number of Rows	Number of Positions Loaded	Contact Material	Termination	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions	Insulation Color	Fastening Type	Insulation Material	Contact Length - Post
Sullins Connector Solutions PPTC082LFBN	3 A	Square	Through Hole	UL94 V-0	2.54 mm	0.1 in	3.2 mm	0.126 in	2	All	Phosphor Bronze	Solder	Tin	-40 °C	105 ░C	Female Socket	0.335 "	8.51 mm	Header	0.1 in	2.54 mm	250 VDC	16	Black	Push-Pull	Polyester
Sullins Connector Solutions PPTC082LJBN-RC	3 A	Square	Through Hole Right Angle	UL94 V-0	2.54 mm	0.1 in	3.15 mm		2	All	Phosphor Bronze	Solder	Tin	-40 °C	105 ░C	Female Socket			Header	0.1 in	2.54 mm	250 VDC	16	Black	Push-Pull	Polyester	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
