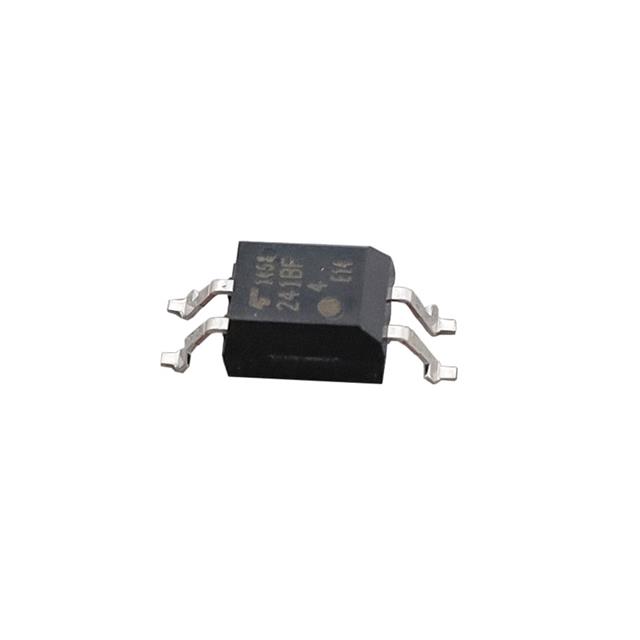

TLP241BF(D4LF4,F

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 2A 0-100V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TLP241BF(D4LF4,F

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NO 2A 0-100V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLP241BF(D4LF4,F

Approval Agency	VDE, cUL, CSA, UL
Load Current	2 A
Mounting Type	Surface Mount
On-State Resistance (Max) [Max]	200 mOhms
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output Type	DC, AC
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
Termination Style	Gull Wing
Voltage - Input	1.65 VDC
Voltage - Load [Max]	100 V
Voltage - Load [Min]	0 V

TLP241 Series

Part	Approval Agency	Output Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Load Current	Supplier Device Package	Package / Case	Package / Case	Voltage - Input	Voltage - Load [Max]	Termination Style	On-State Resistance (Max) [Max]
Toshiba Semiconductor and Storage TLP241B(TP1,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD	0.3 in 7.62 mm	1.65 VDC	100 V	SMD (SMT) Tab	200 mOhms
Toshiba Semiconductor and Storage TLP241B(LF1,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	SMD (SMT) Tab	200 mOhms
Toshiba Semiconductor and Storage TLP241B(F	CSA cUL UL VDE	AC DC	Through Hole	-40 °C	110 °C	2 A	4-DIP	4-DIP (0.300" 7.62mm)		1.65 VDC	100 V	PC Pin	200 mOhms
Toshiba Semiconductor and Storage TLP241BF(D4TP4,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	Gull Wing	200 mOhms
Toshiba Semiconductor and Storage TLP241BF(D4LF4,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	Gull Wing	200 mOhms
Toshiba Semiconductor and Storage TLP241B(D4,F	CSA cUL UL VDE	AC DC	Through Hole	-40 °C	110 °C	2 A	4-DIP	4-DIP (0.300" 7.62mm)		1.65 VDC	100 V	PC Pin	200 mOhms
Toshiba Semiconductor and Storage TLP241B(TP5,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	SMD (SMT) Tab	200 mOhms
Toshiba Semiconductor and Storage TLP241B(D4,TP1,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	SMD (SMT) Tab	200 mOhms
Toshiba Semiconductor and Storage TLP241B(D4,LF1,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	SMD (SMT) Tab	200 mOhms
Toshiba Semiconductor and Storage TLP241B(LF5,F	CSA cUL UL VDE	AC DC	Surface Mount	-40 °C	110 °C	2 A	4-SMD	4-SMD Gull Wing		1.65 VDC	100 V	SMD (SMT) Tab	200 mOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.18
		10	$ 1.45
		100	$ 1.13

Description

General part information

TLP241 Series

Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
