A05SR05SR30K152B

Active

JST Sales America Inc.

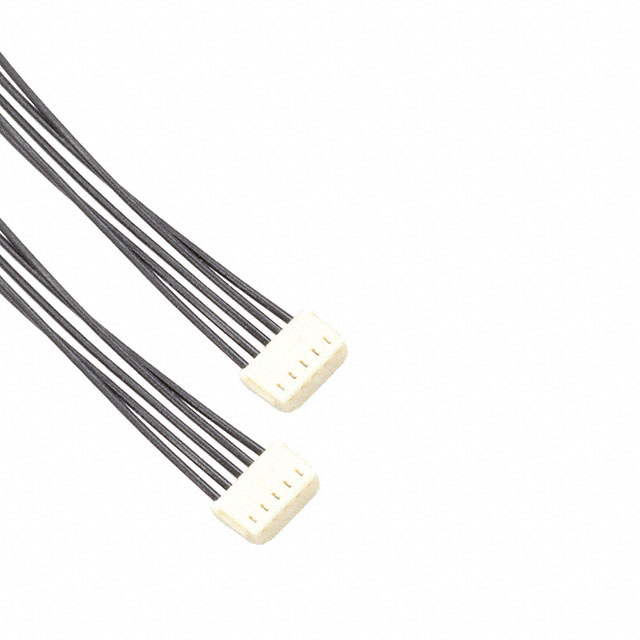

JUMPER 05SR-3S - 05SR-3S 6"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 05SR-3S - 05SR-3S 6"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Rows	Length [x]	Length [x]	Length [x]	Contact Finish	Length	Length	Length	Length
JST Sales America Inc. A05SR05SR30K102A	Socket to Socket Reversed	IDC	0.039 "	1 mm	1	4 "	0.333 ft	101.6 mm	Tin
JST Sales America Inc. A05SR05SR30K51B	Socket to Socket	IDC	0.039 "	1 mm	1				Tin	50.8 mm	2 "	0.167 '
JST Sales America Inc. A05SR05SR30K152B	Socket to Socket	IDC	0.039 "	1 mm	1				Tin	152.4 mm	6 "		0.5 '
JST Sales America Inc. A05SR05SR30K254B	Socket to Socket	IDC	0.039 "	1 mm	1				Tin	254 mm	10 in	0.833 ft
JST Sales America Inc. A05SR05SR30K152A	Socket to Socket Reversed	IDC	0.039 "	1 mm	1				Tin	152.4 mm	6 "		0.5 '
JST Sales America Inc. A05SR05SR30K254A	Socket to Socket Reversed	IDC	0.039 "	1 mm	1				Tin	254 mm	10 in	0.833 ft
JST Sales America Inc. A05SR05SR30K102B	Socket to Socket	IDC	0.039 "	1 mm	1	4 "	0.333 ft	101.6 mm	Tin
JST Sales America Inc. A05SR05SR30K305B	Socket to Socket	IDC	0.039 "	1 mm	1				Tin	304.8 mm		1 ft
JST Sales America Inc. A05SR05SR30K203A	Socket to Socket Reversed	IDC	0.039 "	1 mm	1				Tin	203.2 mm	8 in	0.667 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
