2315227

Active

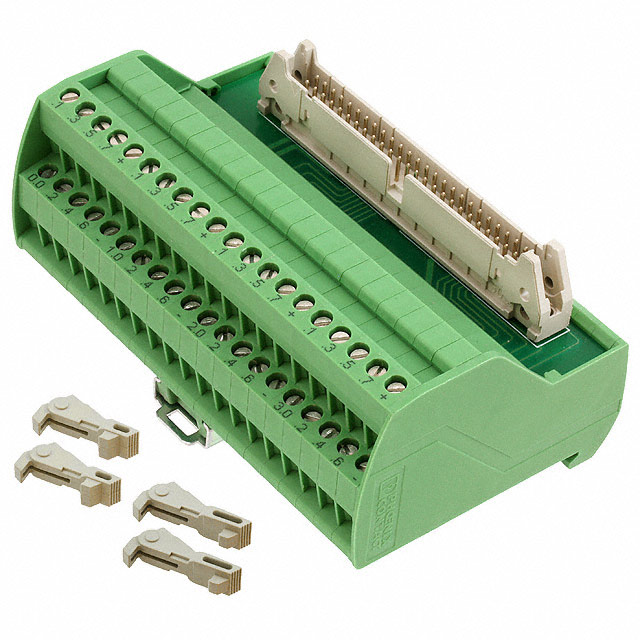

Phoenix Contact

TERMINAL BLOCK INTERFACE MODULES VIP-2/SC/FLK50/PLC 32CH INTERFACE

Search across all available documentation for this part.

Active

Phoenix Contact

TERMINAL BLOCK INTERFACE MODULES VIP-2/SC/FLK50/PLC 32CH INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	2315227

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact)	1 A
Length	106.1 mm
Length [x]	4.177 in
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Positions / Poles	50
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	60 V
Width	65.5 mm
Width [y]	2.579 in
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

Terminal Block Interface Modules VIP-2/SC/FLK50/PLC 32CH INTERFACE

Part	Process Side Connection	Width	Width [y]	Wire Gauge [Min]	Wire Gauge [Max]	Voltage - Rated	Positions / Poles	Length [x]	Length	Operating Temperature [Max]	Operating Temperature [Min]	Control Side Cable Retainer	Current Rating (Per Contact)	Control Side Connection [custom]	Control Side Connection [custom]
Phoenix Contact 2315227	Terminal Blocks - Screw Connection	65.5 mm	2.579 in	12 AWG	24 AWG	60 V	50	4.177 in	106.1 mm	50 °C	-20 C	Latches	1 A	Male	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 75.77
Sager	N/A	1	$ 92.82
		10	$ 82.87

General part information

Terminal Block Interface Modules VIP-2/SC/FLK50/PLC 32CH INTERFACE
