27-3/4"X66'

Active

3M (TC)

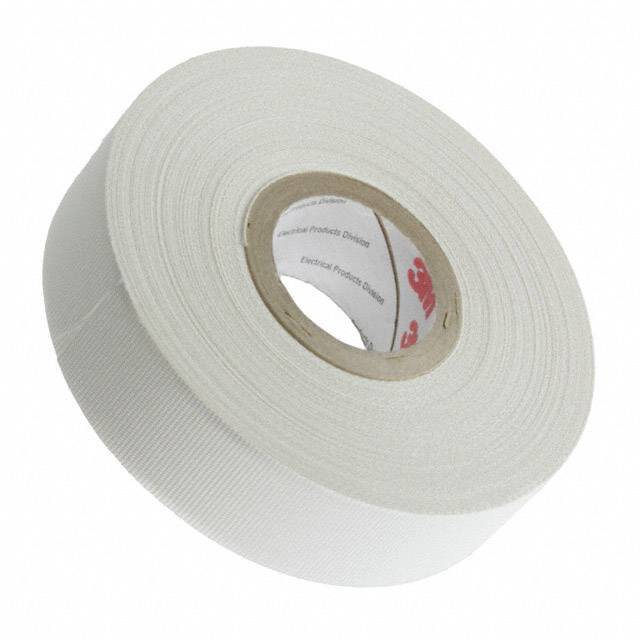

TAPE ELE/GLS CLOTH WHT 3/4"X22YD

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELE/GLS CLOTH WHT 3/4"X22YD

Technical Specifications

Parameters and characteristics for this part

Specification	27-3/4"X66'

Adhesive	Rubber
Backing, Carrier	Glass Cloth
Color	White
Length	20.1 m
Length	66 ft
Length	22 yds
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical, Glass Cloth
Temperature Range	130 °C
Temperature Range	266 °F
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Width	0.75 in
Width	19.05 mm
Width	0.75 in

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Tape Type	Temperature Range	Temperature Range	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Shelf Life	Shelf Life Start	Backing, Carrier	Adhesive	Color	Width	Width	Width	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Length	Length	Length
3M (TC) 27-3/4"X66'	27 °C 80 °F	10 °C	Electrical Glass Cloth	130 °C	266 °F	0.005 "	5 mils	0.127 mm	60 Months	Date of Manufacture	Glass Cloth	Rubber	White	0.75 in	19.05 mm	0.75 in	2 mils	0.051 mm	0.002 "	20.1 m	66 ft	22 yds
3M (TC) 27-3/4"X60YD	27 °C 80 °F	10 °C	Electrical Glass Cloth	130 °C	266 °F	0.005 "	5 mils	0.127 mm	60 Months	Date of Manufacture	Glass Cloth	Rubber	White	0.75 in	19.05 mm	0.75 in	2 mils	0.051 mm	0.002 "	55 m	180 ft	60 yds

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electrical, Glass Cloth Tape Rubber Adhesive White 0.75" (19.05mm) 3/4" X 66' (20.1m) 22 yds
