R124052003W

Active

Radiall USA, Inc.

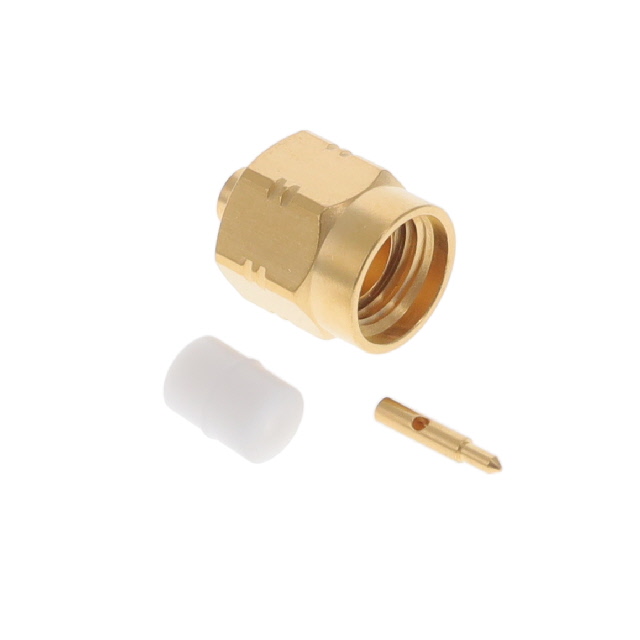

SMA / STRAIGHT PLUG SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R124052003W

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Body Material	Housing Color	Connector Style	Voltage Rating	Number of Ports	Body Finish	Dielectric Material	Center Contact Material	Impedance	Center Contact Plating	Shield Termination	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Cable Group	Mounting Type
Radiall USA, Inc. R124052003	Stainless Steel	Gold	SMA	500 V	1	Gold	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Gold	Solder	18 GHz	Male Pin Plug	-65 ░C	105 ░C	Solder	RG-405 (.085" Semi Rigid)	Free Hanging (In-Line)
Radiall USA, Inc. R124052003W	Stainless Steel	Gold	SMA	335 V	1	Gold	Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Gold	Solder	18 GHz	Male Pin Plug	-65 ░C	105 ░C	Solder	RG-405 (.085" Semi Rigid)	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 6.99

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
