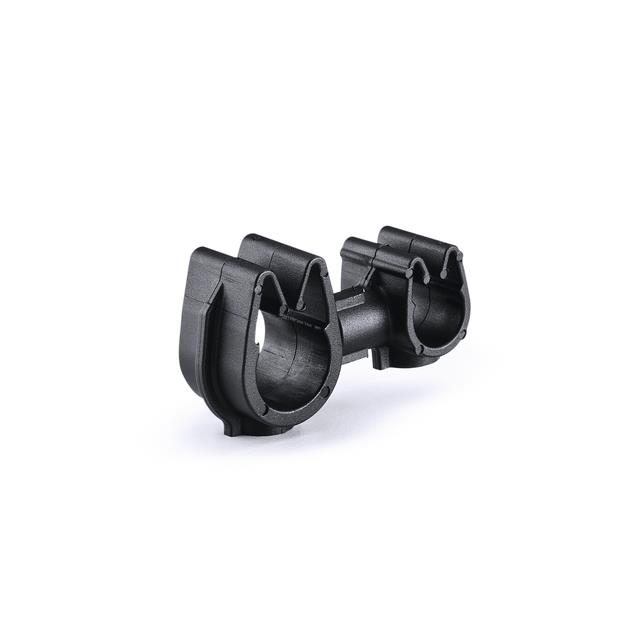

156-02284

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES MOC CLIP TO MOC CLIP, 5 MM, 9 MM, PA66HIRHSUV, BLACK, 2000/CTN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

156-02284

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES MOC CLIP TO MOC CLIP, 5 MM, 9 MM, PA66HIRHSUV, BLACK, 2000/CTN

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	156-02284

Color	Black
Features	Impact Modified, Heat Stabilized, UV Stabilized
Height [z]	0.68 in
Height [z]	17.27 mm
Length [x]	29.72 mm
Length [x]	1.17 in
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 HB
Opening Size [Max] [z]	5.59 mm
Opening Size [Max] [z]	0.22 in
Opening Size [Min] [z]	0.16 in
Opening Size [Min] [z]	4.06 mm
Type	C-Type, Clip
Type Attributes	Open

WSSDFTM Series

Cable Ties Standoff Fir Tree Cable Tie, 25mm standoff, 10mm Hole Dia, 9.5 Tie, PA66HIRHSUV, Black, 3000/ctn

...

Part	Height [z]	Height [z]	Length	Length	Color	Material Flammability Rating	Features	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Type Attributes	Type	Material	Wire/Cable Tie Type	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Mounting Type	Length - Approximate	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length [x]	Length [x]	Length	Width [y]	Width [y]	Length - Approximate [x]	Bundle Diameter	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min]	Opening Size [Max]
HELLERMANNTYTON 156-02017	30.48 mm	1.2 in	2.16 in	54.86 mm	Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized	0.35 in	8.89 mm	0.28 in	7.11 mm	Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free
HELLERMANNTYTON 156-01790					Black		Heat Stabilized Impact Modified UV Stabilized							Polyamide (PA66) Nylon 6/6	Locking Standard	22.68 kg	50 lbs	0.089 ft	27.18 mm	1.07 in	Swivel Clip Mount	1 in	0.86 in	22 mm
HELLERMANNTYTON 156-02203	40.89 mm	1.61 in			Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized	1.14 in	28.96 mm	0.91 in	23.11 mm	Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free											56.13 mm	2.21 in
HELLERMANNTYTON 156-02363	40.89 mm	1.61 in	66.29 mm		Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized	0.86 in	21.84 mm	0.67 in	17.02 mm	Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free													2.61 in
HELLERMANNTYTON 156-02434					Brown									Polyamide (PA46) Nylon 4/6	Locking Standard	54.43 kg	120 lbs	0.758 ft	231.14 mm	9.1 in	Fir Tree Push Mount							22.35 mm	0.88 in	9 in	2.25 in
HELLERMANNTYTON 156-02290	36.58 mm	1.44 in	45.21 mm		Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized		5.59 mm		4.06 mm	Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free												1.78 in						0.16 in	0.22 in
HELLERMANNTYTON 156-02280	10.92 mm	0.43 "	24.13 mm		Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized		5.59 mm		4.06 mm	Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free													0.95 "					0.16 in	0.22 in
HELLERMANNTYTON 156-02086	22.1 mm	0.87 "	46.74 mm		Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized					Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free													1.84 "							13.72 mm	0.41 in	10.41 mm	0.54 in
HELLERMANNTYTON 156-02293			27.18 mm		Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized					Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free													1.07 in											0.22 in 5.59 mm	0.27 in 6.86 mm
HELLERMANNTYTON 156-02284	17.27 mm	0.68 in			Black	UL94 HB	Heat Stabilized Impact Modified UV Stabilized		5.59 mm		4.06 mm	Open	C-Type Clip	Polyamide (PA66) Nylon 6/6 Halogen Free											29.72 mm	1.17 in						0.16 in	0.22 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.42
Sager	N/A	2000	$ 0.55
		4000	$ 0.51

Description

General part information

WSSDFTM Series

Cable Ties Standoff Fir Tree Cable Tie, 25mm standoff, 10mm Hole Dia, 9.5 Tie, PA66HIRHSUV, Black, 3000/ctn
