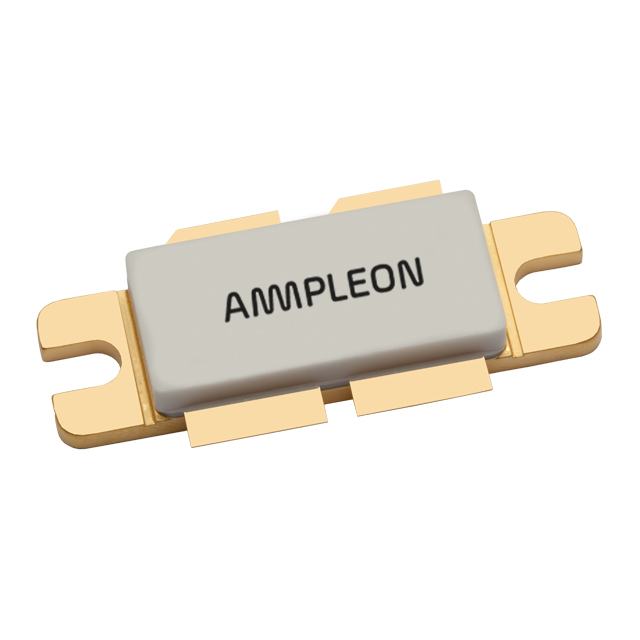

BLF647,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V LDMOST

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V LDMOST

Technical Specifications

Parameters and characteristics for this part

Part	Power - Output	Gain	Configuration	Mounting Type	Voltage - Test	Supplier Device Package	Package / Case	Current - Test	Voltage - Rated	Frequency	Current Rating (Amps)
Ampleon USA Inc. BLF647PS,112	200 W	17.5 dBi	Common Source Dual	Surface Mount	32 V	LDMOST	SOT-1121B	100 mA	65 V	1.3 GHz
Ampleon USA Inc. BLF647,112	120 W	14.5 dBi	Common Source Dual	Chassis Mount	28 V	LDMOST	SOT-540A		65 V	600 MHz	18 A
Ampleon USA Inc. BLF647PSJ	200 W	17.5 dBi	Common Source Dual	Surface Mount	32 V	LDMOST	SOT-1121B	100 mA	65 V	1.3 GHz
Ampleon USA Inc. BLF647P,112	200 W	18 dBi	Common Source Dual	Chassis Mount	32 V	LDMOST		100 mA	65 V	1.3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 600MHz 14.5dB 120W LDMOST
