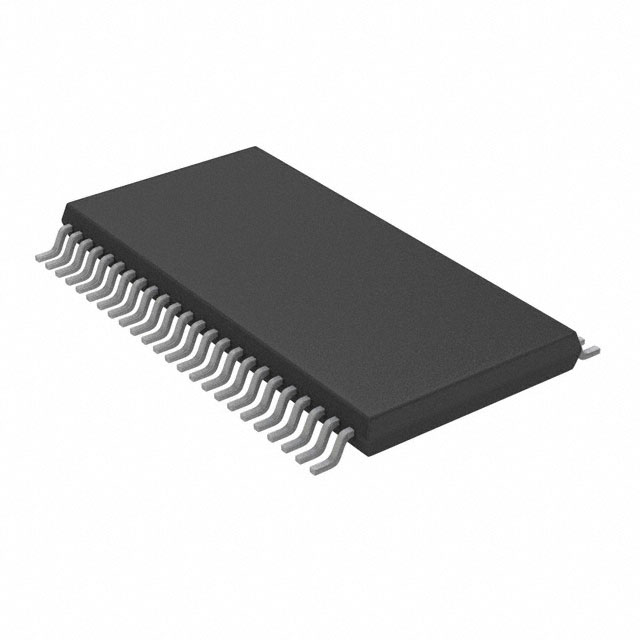

TC78S121FNG,EL

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPOLAR 48HTSSOP

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPOLAR 48HTSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TC78S121FNG,EL

Applications	General Purpose
Current - Output	2 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (8)
Package / Case	Exposed Pad, 48-TFSOP
Package / Case	6.1 mm, 0.24 in
Supplier Device Package	48-HTSSOP
Technology	Power MOSFET
Voltage - Load [Max]	38 V
Voltage - Load [Min]	8 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Interface	Applications	Mounting Type	Current - Output	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Motor Type - AC, DC	Technology	Output Configuration	Package / Case	Package / Case	Motor Type - Stepper	Supplier Device Package	Function	Voltage - Supply [Min]	Voltage - Supply [Max]
Toshiba Semiconductor and Storage TC78S121FNG,EL	Parallel	General Purpose	Surface Mount	2 A	8 V	38 V	150 °C	-20 °C	Brushed DC	Power MOSFET	Half Bridge (8)	48-TFSOP Exposed Pad	0.24 in 6.1 mm	Bipolar	48-HTSSOP	Driver - Fully Integrated Control and Power Stage	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.89
	Digi-Reel®	1	$ 4.89
	Tape & Reel (TR)	2000	$ 1.69

General part information

Bipolar Motor Driver Power MOSFET Parallel 48-HTSSOP
