T3P16MC1LZ

Active

ITT Cannon, LLC

TRIDENT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

TRIDENT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Contact Finish	Pin or Socket	Contact Termination	Wire Gauge	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
ITT Cannon, LLC T3P16MS1LT	Brass	Tin	Pin	Solder Cup	16 AWG	Machined
ITT Cannon, LLC T3P16FS1LT	Brass	Tin	Socket	Solder Cup	16 AWG	Machined
ITT Cannon, LLC T3P16FE1LY	Brass	Gold	Socket	Crimp	16 AWG	Machined	0.76 Ám	30 Áin
ITT Cannon, LLC T3P16MC1LZ	Brass	Gold	Pin	Crimp	16 AWG	Machined			Flash
ITT Cannon, LLC T3P16FC3LZ	Brass	Gold	Socket	Crimp	16 AWG	Machined			Flash
ITT Cannon, LLC T3P16MC3LT	Brass	Tin	Pin	Crimp	16 AWG	Machined
ITT Cannon, LLC T3P16FC1LZ	Brass	Gold	Socket	Crimp	16 AWG	Machined
ITT Cannon, LLC T3P16MC1LX	Brass	Gold	Pin	Crimp	16 AWG	Machined	3 µm	118.1 µin
ITT Cannon, LLC T3P16MC3LX	Brass	Gold	Pin	Crimp	16 AWG	Machined	3 µm	118.1 µin
ITT Cannon, LLC T3P16FC1LT	Brass	Tin	Socket	Crimp	16 AWG	Machined

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

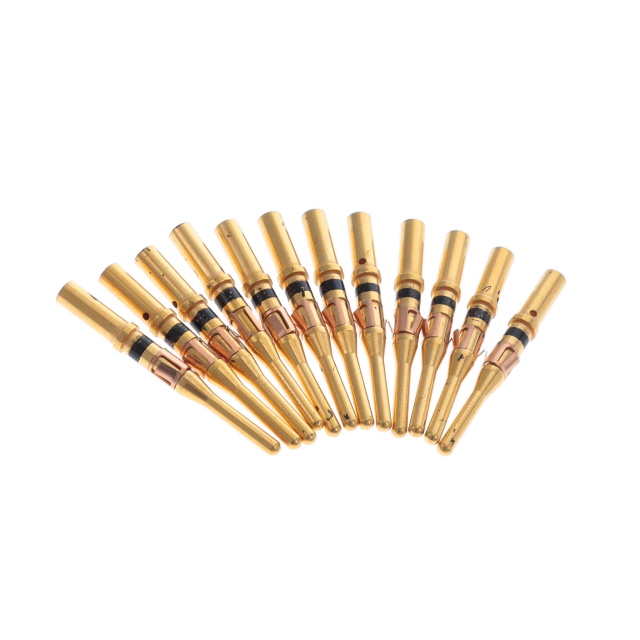

Pin Contact Gold Crimp 16 AWG Machined
