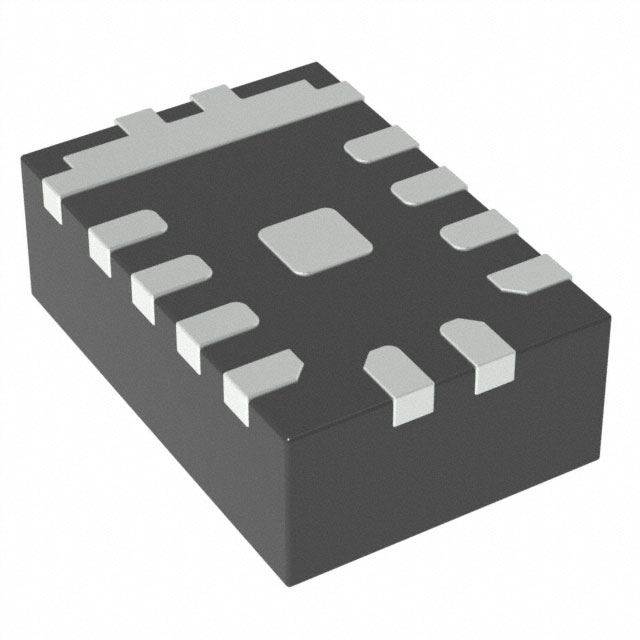

MP2308GD-P
NRNDMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 4A 14FCQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP2308GD-P
NRNDMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 4A 14FCQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP2308GD-P |
|---|---|
| Current - Output | 4 A |
| Frequency - Switching [Max] | 2 MHz |
| Frequency - Switching [Min] | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 14-PowerVFQFN |
| Supplier Device Package | 14-FCQFN (2x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Output (Max) [Max] | 16.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 2.08 | |
| 1000 | $ 1.75 | |||
| 2500 | $ 1.67 | |||
| 5000 | $ 1.60 | |||
Description
General part information
MP2308 Series
Buck Switching Regulator IC Positive Adjustable 0.815V 1 Output 4A 14-PowerVFQFN
