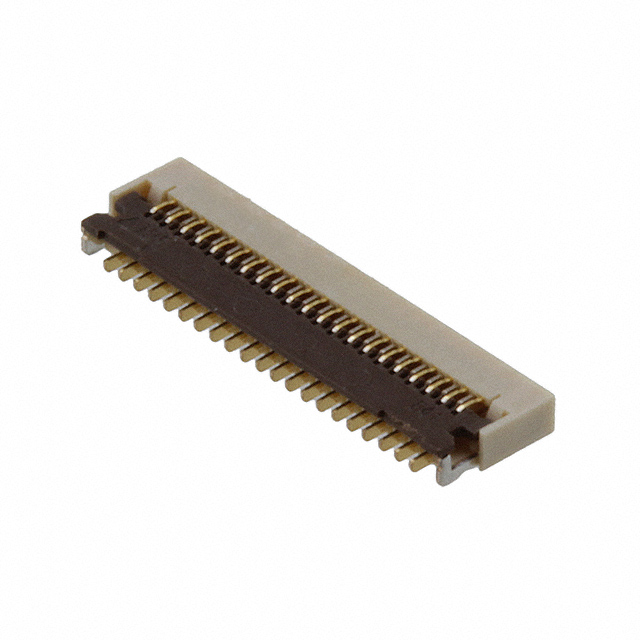

FH43B-41S-0.2SHW(99)
ObsoleteHirose Electric USA, Inc.
CONN FPC BOTTOM 41POS 0.2MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FH43B-41S-0.2SHW(99)
ObsoleteHirose Electric USA, Inc.
CONN FPC BOTTOM 41POS 0.2MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FH43B-41S-0.2SHW(99) |
|---|---|
| Actuator Color | Black |
| Actuator Material | Nylon, Polyamide (PA) |
| Cable End Type | Tabbed |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.2 A |
| FFC, FCB Thickness | 0.2 mm |
| Flat Flex Type | FPC |
| Height Above Board | 0.88 mm |
| Height Above Board | 0.035 " |
| Housing Color | Beige |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 41 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.2 mm |
| Pitch [x] | 0.008 in |
| Termination | Solder |
| Voltage Rating | 30 VDC |
FH43B Series
| Part | Pitch [x] | Pitch [x] | Material Flammability Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Locking Feature | Mating Cycles | Actuator Color | Termination | FFC, FCB Thickness | Voltage Rating | Actuator Material | Cable End Type | Connector/Contact Type | Current Rating (Amps) | Contact Finish | Contact Material | Housing Material | Flat Flex Type | Height Above Board | Height Above Board | Number of Positions | Housing Color | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 51 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 71 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 61 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 41 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Halogen Free Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | FPC | 0.88 mm | 0.035 " | 31 | Beige | 1.97 Áin | 0.05 Ám |
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Halogen Free Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | FPC | 0.88 mm | 0.035 " | 35 | Beige | 1.97 Áin | 0.05 Ám |
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 35 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 71 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 71 | Beige | ||
Hirose Electric USA, Inc. | 0.2 mm | 0.008 in | UL94 V-0 | Surface Mount Right Angle | 85 °C | -55 °C | Flip Lock | 10 | Black | Solder | 0.2 mm | 30 VDC | Nylon Polyamide (PA) | Tabbed | Contacts Bottom | 0.2 A | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | FPC | 0.88 mm | 0.035 " | 51 | Beige |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.35 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.36 | |||
| 50 | $ 2.25 | |||
| Digi-Reel® | 1 | $ 4.54 | ||
| 10 | $ 4.13 | |||
| 25 | $ 3.91 | |||
| 50 | $ 3.82 | |||
| 100 | $ 3.64 | |||
| 250 | $ 3.18 | |||
Description
General part information
FH43B Series
41 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Documents
Technical documentation and resources
