TN8D51A-HB11-E
ObsoleteON Semiconductor
IC REG BUCK 12V 8A TO220F5I5H-HB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TN8D51A-HB11-E |
|---|---|
| Current - Output | 8 A |
| Function | Step-Down |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -10 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-220-5 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F5I5H-HB |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 48 V |
| Voltage - Input (Min) [Min] | 20 V |
| Voltage - Output (Min/Fixed) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TN8D51 Series

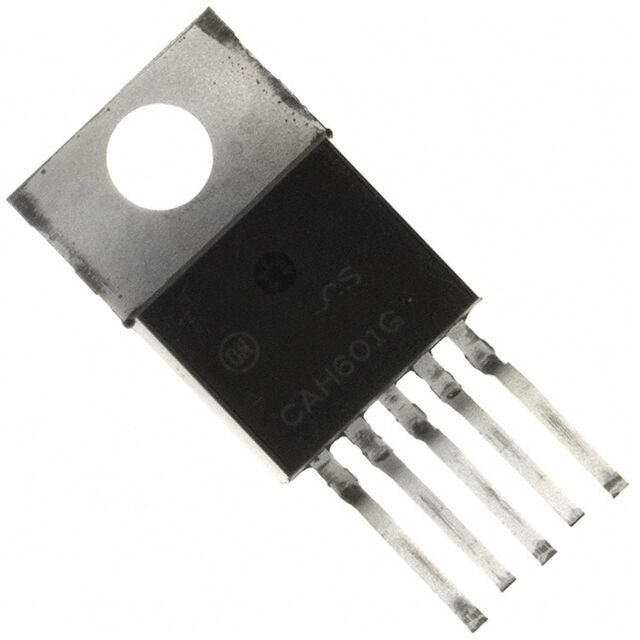

Buck Switching Regulator IC Positive Fixed 12V 1 Output 8A TO-220-5 Full Pack, Formed Leads
