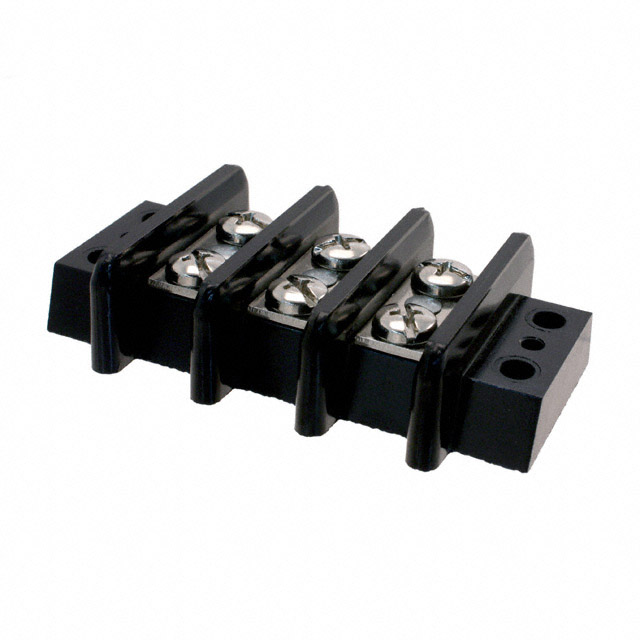

0382800103

Obsolete

Molex

CONN BARRIER STRIP 3CIRC 0.688"

Deep-Dive with AI

Search across all available documentation for this part.

0382800103

Obsolete

Molex

CONN BARRIER STRIP 3CIRC 0.688"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0382800103

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Color	Black
Current Rating (Amps)	50 A
Features	Flange
Material - Insulation	Phenol Formaldehyde (Phenolic)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	3
Number of Rows	2
Number of Wire Entries	6
Operating Temperature	105 C
Pitch [x]	17.48 mm
Pitch [x]	0.688 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Brass
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge	6 AWG

038280 Series

Part	Terminal Block Type	Mounting Type	Voltage Rating	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Barrier Type	Pitch [x]	Pitch [x]	Number of Rows	Material Flammability Rating	Number of Wire Entries	Bottom Termination	Top Termination	Material - Insulation	Current Rating (Amps)	Color	Number of Circuits	Features	Wire Gauge	Terminal Screw Finish	Terminal Screw Material	Number of Circuits [custom]
Molex 0382800404	Barrier Block	Chassis Panel	300 VDC	105 C	6 AWG	18 AWG	2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	8	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black	4	Flange
Molex 0382800109	Barrier Block	Chassis Panel	300 VDC	105 C			2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	18	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black		Flange	6 AWG	Nickel	Brass
Molex 0382800405	Barrier Block	Chassis Panel	300 VDC	105 C	6 AWG	18 AWG	2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	10	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black	5	Flange
Molex 0382800103	Barrier Block	Chassis Panel	300 VDC	105 C			2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	6	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black	3	Flange	6 AWG	Nickel	Brass
Molex 0382800108	Barrier Block	Chassis Panel	300 VDC	105 C			2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	16	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black		Flange	6 AWG	Nickel	Brass	8
Molex 0382800106	Barrier Block	Chassis Panel	300 VDC	105 C			2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	12	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black	6	Flange	6 AWG	Nickel	Brass
Molex 0382800104	Barrier Block	Chassis Panel	300 VDC	105 C			2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	8	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black	4	Flange	6 AWG	Nickel	Brass
Molex 0382800102	Barrier Block	Chassis Panel	300 VDC	105 C			2 Wall (Dual)	17.48 mm	0.688 in	2	UL94 V-0	4	Closed	Screws	Phenol Formaldehyde (Phenolic)	50 A	Black	2	Flange	6 AWG	Nickel	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

038280 Series

3 Circuit 0.688" (17.48mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

No documents available
