09110013121

Active

HARTING Technology Group

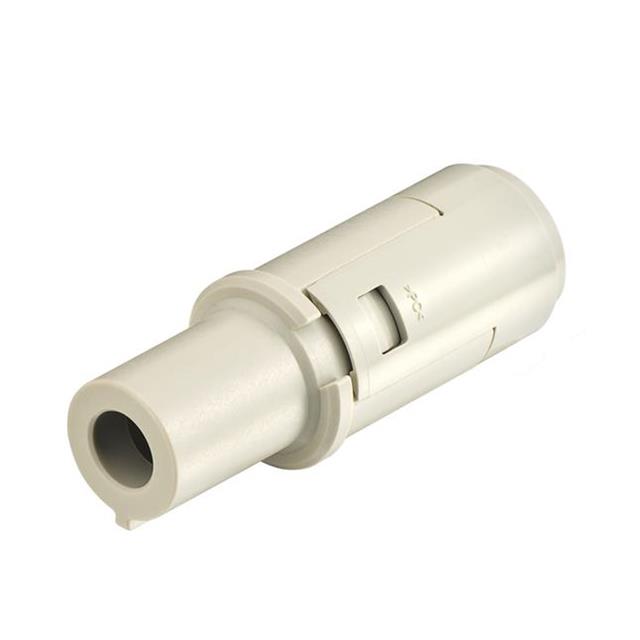

CIRCULAR CONNECTOR, POLYCARBONATE, FEMALE, CRIMP TERMINAL

Search across all available documentation for this part.

Active

HARTING Technology Group

CIRCULAR CONNECTOR, POLYCARBONATE, FEMALE, CRIMP TERMINAL

Technical Specifications

Parameters and characteristics for this part

Specification	09110013121

Connector Type	Module without Contacts
Contact Type	Han-Modular®
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	2000 VDC

Part	Accessory Type	Number of Positions	Material Flammability Rating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Connector Type	Housing Material	Contact Type	Termination Style	Current Rating (Amps)	Color
HARTING Technology Group 09110013095	Fixing Plate
HARTING Technology Group 09110013101		1	UL94 V-0	4000 V	125 °C	-40 °C	Female	Module without Contacts	Polyamide (PA) Nylon	Han-Modular®	Crimp	350 A
HARTING Technology Group 09110013111		1	UL94 V-0	4000 V	125 °C	-40 °C	Female	Module without Contacts	Polyamide (PA) Nylon	Han-Modular®	Crimp	650 A
HARTING Technology Group 09110013096
HARTING Technology Group 09110013121		1	UL94 V-0	2000 VDC	125 °C	-40 °C	Female	Module without Contacts	Polycarbonate (PC)	Han-Modular®	Crimp
HARTING Technology Group 09110013001		1	UL94 V-0	4000 V	125 °C	-40 °C	Male	Module without Contacts	Polyamide (PA) Nylon	Han-Modular®	Crimp	350 A
HARTING Technology Group 09110013094
HARTING Technology Group 09110013011		1	UL94 V-0	4000 V	125 °C	-40 °C	Male	Module without Contacts	Polyamide (PA) Nylon	Han-Modular®	Crimp	650 A
HARTING Technology Group 09110013112		1	UL94 V-0	4000 V	125 °C	-40 °C	Female	Module without Contacts	Nylon Polyamide (PA) Polycarbonate (PC)	Han-Modular®	Crimp	650 A	Gray
HARTING Technology Group 09110013021		1	UL94 V-0	2000 VDC	125 °C	-40 °C	Male	Module without Contacts	Polycarbonate (PC)	Han-Modular®	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts 1 Position Crimp
