011032PW125

Active

Essentra Access Solutions

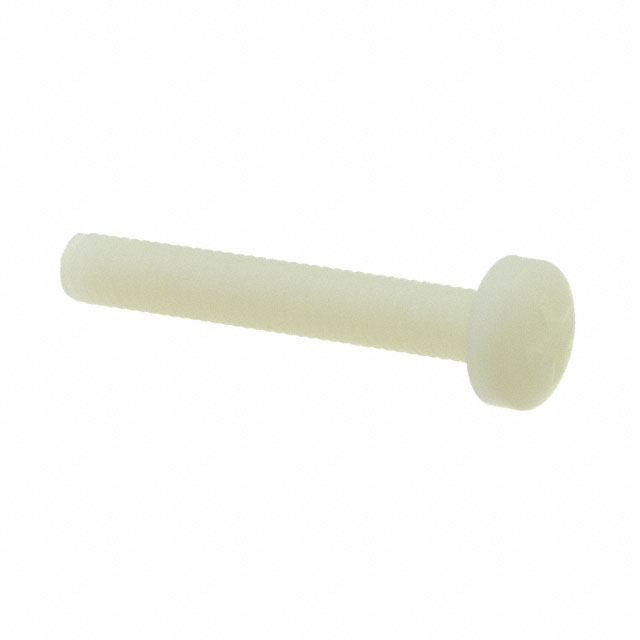

PAN PHILLIPS SCREW 10-32 THREAD

Search across all available documentation for this part.

Active

Essentra Access Solutions

PAN PHILLIPS SCREW 10-32 THREAD

Technical Specifications

Parameters and characteristics for this part

Part	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Type	Length - Overall [x]	Length - Overall [x]	Drive Type	Screw Head Type	Head Height [z]	Head Height [z]	Material	Length - Overall	Length - Overall	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]
Essentra Access Solutions 011032PW200	9.27 mm	0.365 in	#10-32	Machine Screw	2.15 in	54.61 mm	Phillips	Pan Head	0.15 in	3.81 mm	Nylon
Essentra Access Solutions 011032PW106	9.27 mm	0.365 in	#10-32	Machine Screw			Phillips	Pan Head	0.15 in	3.81 mm	Nylon	30.81 mm	1.213 in
Essentra Access Solutions 011032PW025	9.27 mm	0.365 in	#10-32	Machine Screw	0.4 in	10.16 mm	Phillips	Pan Head	0.15 in	3.81 mm	Nylon			6.35 mm	0.25 in	0.25 in
Essentra Access Solutions 011032PW125	9.27 mm	0.365 in	#10-32	Machine Screw	1.4 in	35.56 mm	Phillips	Pan Head	0.15 in	3.81 mm	Nylon						31.75 mm	1.25 in
Essentra Access Solutions 011032PW150	9.27 mm	0.365 in	#10-32	Machine Screw	1.65 in	41.91 mm	Phillips	Pan Head	0.15 in	3.81 mm	Nylon			38.1 mm				1.5 in
Essentra Access Solutions 011032PW175	9.27 mm	0.365 in	#10-32	Machine Screw	1.9 in		Phillips	Pan Head	0.15 in	3.81 mm	Nylon	48.26 mm
Essentra Access Solutions 011032PW018	9.27 mm	0.365 in	#10-32	Machine Screw			Phillips	Pan Head	0.15 in	3.81 mm	Nylon						4.76 mm	0.188 in
Essentra Access Solutions 011032PW087	9.27 mm	0.365 in	#10-32	Machine Screw			Phillips	Pan Head	0.15 in	3.81 mm	Nylon			0.875 in		22.23 mm		0.875 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#10-32 Pan Head Machine Screw Phillips Drive Nylon
