XA1E-BV311-R

Active

IDEC

EMERGENCY STOP SWITCH, DPST-1NO, SPST-NC, PUSHLOCK RESET/PUSH-PULL, SOLDER, 3 A, 250 V, 250 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

XA1E-BV311-R

Active

IDEC

EMERGENCY STOP SWITCH, DPST-1NO, SPST-NC, PUSHLOCK RESET/PUSH-PULL, SOLDER, 3 A, 250 V, 250 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XA1E-BV311-R

Circuit	DPST-NO/NC
Current Rating (Amps)	2 A, 3 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

XA1E Series

Part	Current Rating (Amps)	Termination Style	Reset Operation	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Mounting Type	Switch Function	Ingress Protection	Circuit
IDEC XA1E-BV311-R	2 A 3 A	Solder Lug	Twist	30 V	125 V	-25 °C	60 °C	16.2 mm	Panel Mount Front	Off-On On-Off	IP65 - Dust Tight Water Resistant	DPST-NO/NC
IDEC XA1E-BV304-R	2 A 3 A	Solder Lug	Twist	30 V	125 V	-25 °C	60 °C	16.2 mm	Panel Mount Front	On-Off	IP65 - Dust Tight Water Resistant	4PST-NC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.75
		5	$ 45.19
		10	$ 42.61
		25	$ 39.43
		50	$ 37.17
		100	$ 35.04
Newark	Each	1	$ 57.48
		5	$ 52.87
		10	$ 48.86
		25	$ 46.56
		50	$ 44.25

Description

General part information

XA1E Series

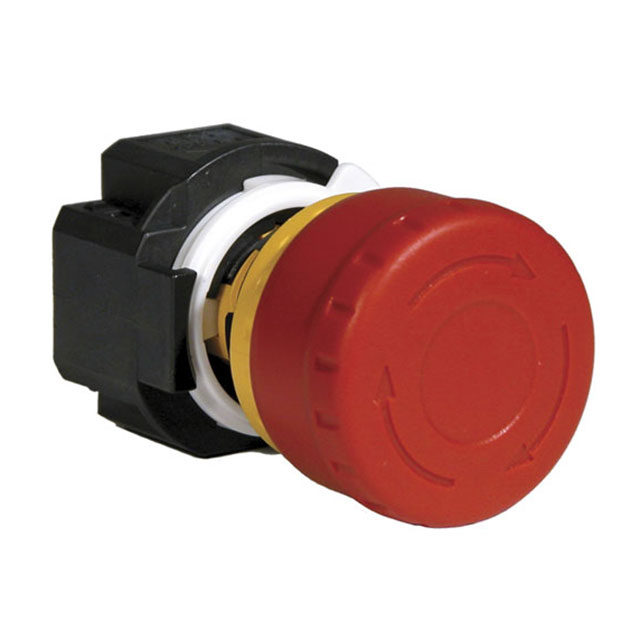

The XA1E-BV311-R is a 29mm single or double-pole single-throw (SPST/DPST) non-illuminated Emergency Stop Switch with mushroom head, solder terminal and 1NC contacts. The XA-series with safe break action ensures that the NC contacts open when the contact block is detached from the operator. Direct opening action mechanism.
