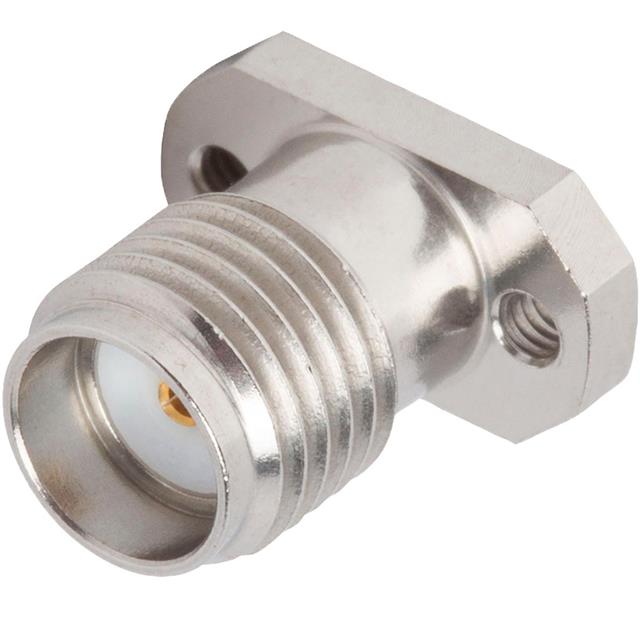

SF2921-61356

Active

Amphenol SV Microwave

CONN SMA JACK STR 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF2921-61356

Active

Amphenol SV Microwave

CONN SMA JACK STR 50 OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF2921-61356

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	27 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

SF2921 Series

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Termination	Impedance	Center Contact Plating	Connector Type	Number of Ports	Connector Style	Center Contact Material	Dielectric Material	Mounting Type	Frequency - Max [Max]	Body Material	Shield Termination	Mating Cycles	Includes	Features	Insertion Loss
Amphenol SV Microwave SF2921-61356	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500
Amphenol SV Microwave SF2921-61356-2S	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61560	Silver	-65 ░C	165 °C		Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Board Edge End Launch	26.5 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware	0.154 dB
Amphenol SV Microwave SF2921-61345	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500
Amphenol SV Microwave SF2921-61506-1S	Silver	-65 ░C	165 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper		Surface Mount	18 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61507-1S	Silver	-65 ░C	165 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper		Surface Mount	26.5 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61450	Silver	-65 ░C	165 °C		Compression	50 Ohms	Gold	Female Socket Jack		SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Board Edge End Launch	26.5 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61507	Silver	-65 ░C	165 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper		Surface Mount	26.5 GHz	Stainless Steel	Screw	500
Amphenol SV Microwave SF2921-61345-2S	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.32
		10	$ 16.75
		25	$ 15.87
		50	$ 15.64
		100	$ 13.80
		250	$ 12.88
		500	$ 12.61

Description

General part information

SF2921 Series

SMA Connector Jack, Female Socket 50 Ohms Surface Mount Compression
