MC100ES60T22D
ObsoleteFreescale Semiconductor - NXP
IC TRANSLTR UNIDIRECTIONAL 8SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC100ES60T22D
ObsoleteFreescale Semiconductor - NXP
IC TRANSLTR UNIDIRECTIONAL 8SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC100ES60T22D |
|---|---|
| Channel Type | Unidirectional |
| Channels per Circuit | 2 |
| Input Signal | LVCMOS, LVTTL |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Signal | LVPECL |
| Output Type | Differential |

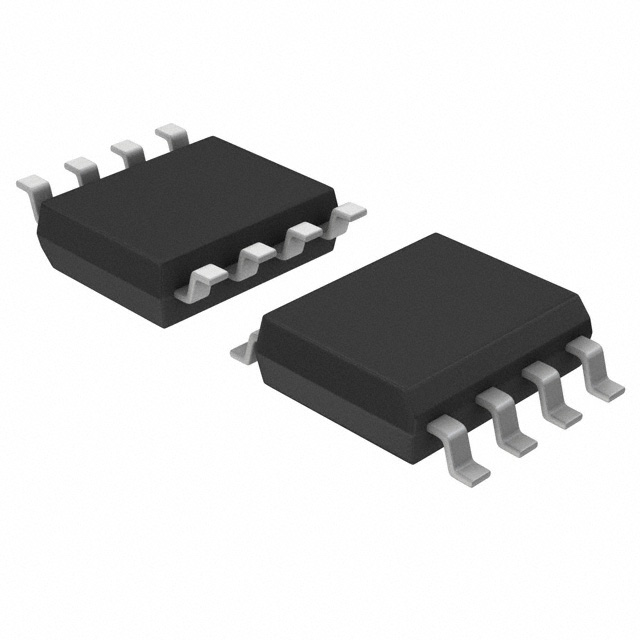

| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 8-SO |
| Translator Type | Mixed Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
100ES60 Series
Mixed Signal Translator Unidirectional 1 Circuit 2 Channel 8-SO
