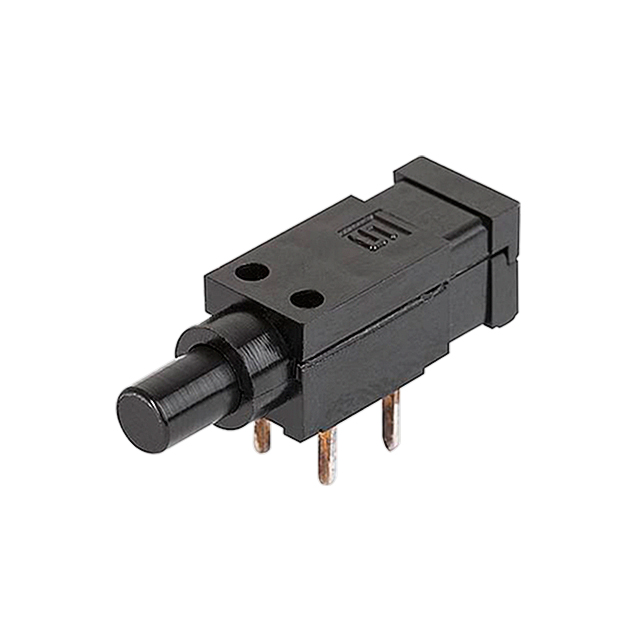

0041.0403

Active

SCHURTER Inc.

SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 2A/48VAC; 1.2A/48VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 2A/48VAC; 1.2A/48VDC

Technical Specifications

Parameters and characteristics for this part

Part	Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - DC	Mechanical Life	Actuator Type	Circuit	Mounting Type	Actuator Marking	Electrical Life	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Termination Style
SCHURTER Inc. 0041.0403	Standard	Green	85 °C	-40 °C	IP40	50 VDC	200000 Cycles	Round Plunger	SPDT	Through Hole Right Angle	No Marking	100000 Cycles	125 V	On-Mom	2 A	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle
