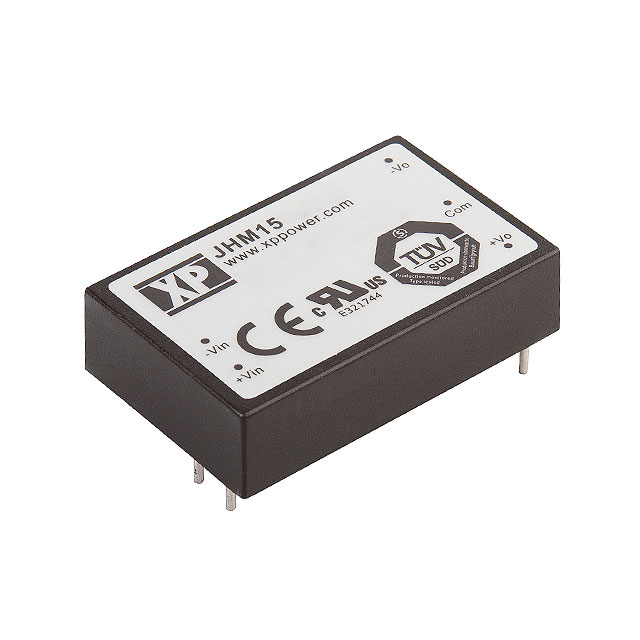

JHM1524S15
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 15 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
JHM1524S15
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 15 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JHM1524S15 |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 87 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 40.6 mm |
| Size / Dimension [x] | 1.6 " |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JHM1524 Series
JHM15 range joins our DC-DC converters that are specifically designed for medical applications. The series includes both single and dual outputs and have a 15 Watt output. There are two wide input ranges of 9V to 18VDC or 18V to 36VDC for nominal 12V and 24VDC applications. Single output models have 5V, 12V or 15VDC and the dual models are offered with either ±5V, ±12V or ±15VDC. For the single output versions, the output voltage is adjustable ±10% via a trim pin. The JHM15 range is housed in compact encapsulated modules that measure only 1.6 x 1 x 0.4" (40.6 x 25.4 x 10.2mm) and have PCB pin mounting. The converters provide 4000VAC double / reinforced isolation for 1 minute at a working voltage of 250VAC. They also provide 2 times Means of Patient Protection (MOPP) at 230VAC and have a patient leakage current of only 2μA maximum.
