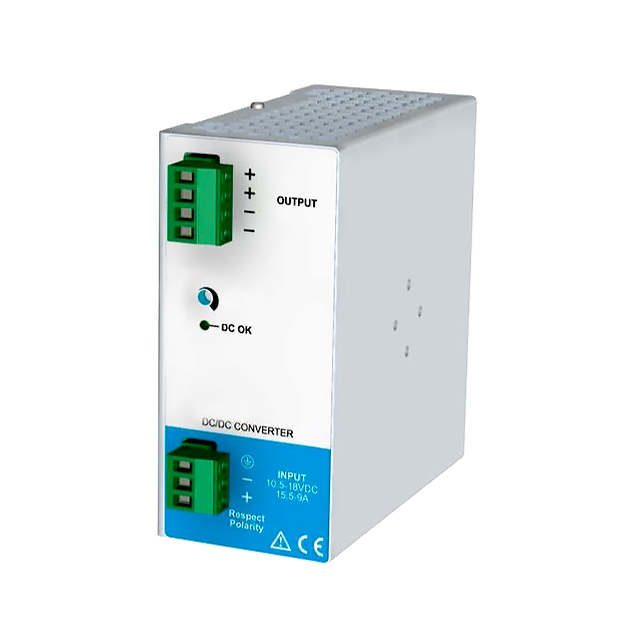

LDD120-4824
ObsoleteEOS Power India Private Ltd
DC/DC DIN RAIL SUPPLY 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
LDD120-4824
ObsoleteEOS Power India Private Ltd
DC/DC DIN RAIL SUPPLY 24V 120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD120-4824 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 5 A |
| DC Voltage - Input (Max) [Max] | 72 V |
| DC Voltage - Input (Min) [Min] | 36 V |
| Efficiency | 89 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Size / Dimension [x] | 4.33 in |
| Size / Dimension [x] | 110 mm |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [z] | 4.53 " |
| Size / Dimension [z] | 115 mm |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDD120 Series
DC/DC DIN RAIL SUPPLY 24V 120W
Documents
Technical documentation and resources
No documents available
