BU-P5219

Active

Mueller Electric Co

CONN BNC TRIAX JACK STR 50 OHM

Search across all available documentation for this part.

Active

Mueller Electric Co

CONN BNC TRIAX JACK STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P5219

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Triaxial
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Three Lug
Housing Color	Silver

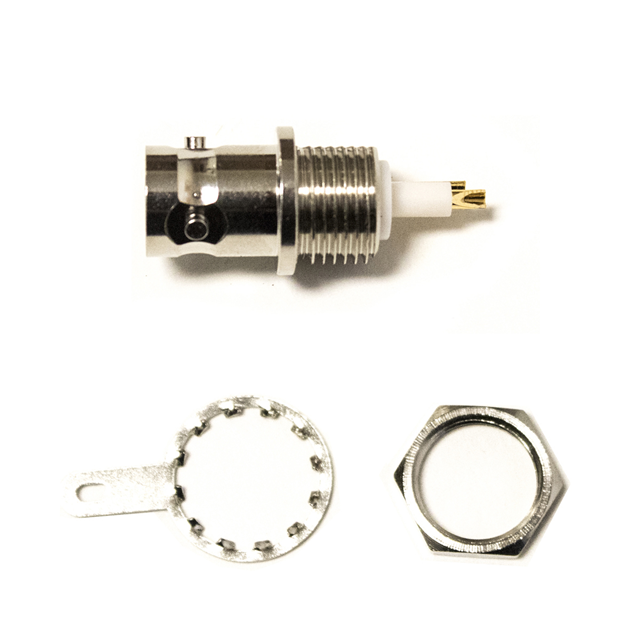

Includes	1 Connector, 1 Solder Tag, 1 Nut
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Shield Termination	Solder Tag

Part	Body Finish	Number of Ports	Contact Termination	Housing Color	Dielectric Material	Mounting Feature	Center Contact Plating	Connector Type	Shield Termination	Fastening Type	Features	Includes	Center Contact Material	Body Material	Connector Style
Mueller Electric Co BU-P5219	Nickel	1	Solder Cup	Silver	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	Gold	Female Socket Receptacle	Solder Tag	Bayonet Lock	Three Lug	1 Connector 1 Nut 1 Solder Tag	Beryllium Copper	Brass	Triaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Connector Receptacle, Female Socket Panel Mount Solder Cup
