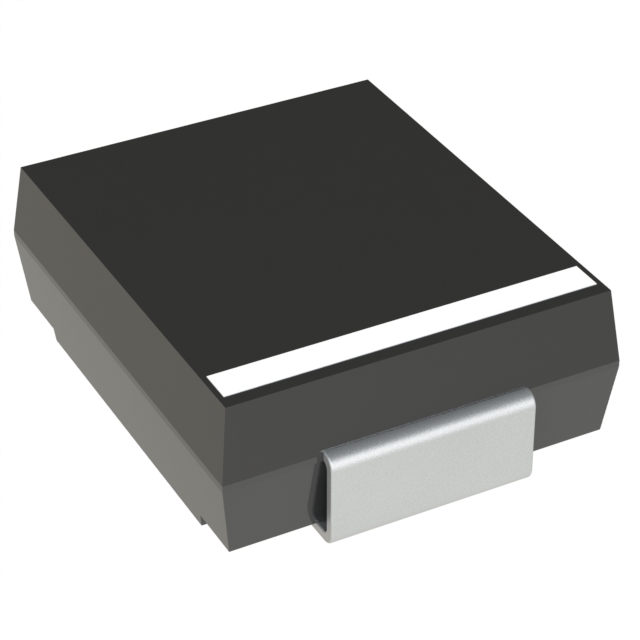

SMCJ60A-AT/TR13
ActiveYAGEO
SMCJ, DO-214AB, 60V, 96.8V, AUTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMCJ60A-AT/TR13
ActiveYAGEO
SMCJ, DO-214AB, 60V, 96.8V, AUTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ60A-AT/TR13 |
|---|---|
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AB (SMC) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 66.7 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 96.8 V |
| Voltage - Reverse Standoff (Typ) | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
SMCJ60 Series
96.8V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
