5962-8871903MYA
ActiveAnalog Devices
IC DAC 12BIT QUAD MONO 44CLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5962-8871903MYA
ActiveAnalog Devices
IC DAC 12BIT QUAD MONO 44CLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5962-8871903MYA |
|---|---|
| Architecture | R-2R |
| Data Interface | Parallel |
| Differential Output | False |
| INL/DNL (LSB) | 0.5 LSB, 0.5 LSB |
| Mounting Type | Surface Mount |
| Number of Bits | 12 bits |
| Number of D/A Converters | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Voltage - Buffered |

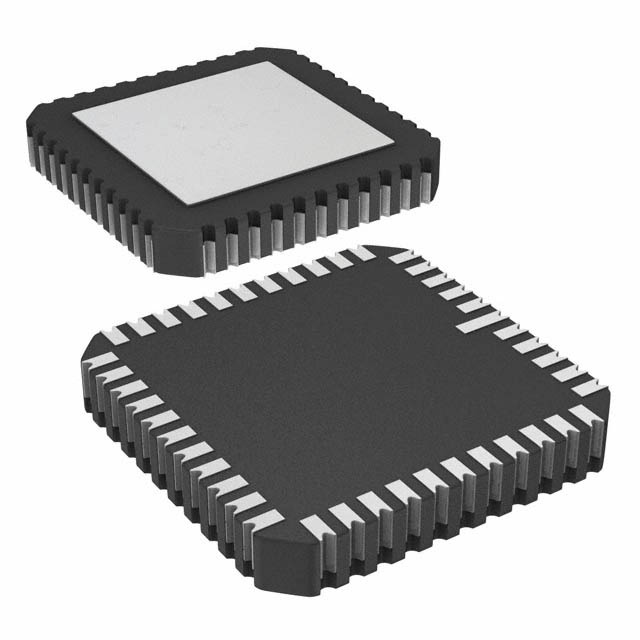

| Package / Case | 44-CLCC |
| Reference Type | External |
| Settling Time | 10 µs |
| Supplier Device Package | 44-CLCC (16.55x16.55) |
| Voltage - Supply, Analog [Max] | 16.5 V |
| Voltage - Supply, Analog [Min] | -11.4 V |
| Voltage - Supply, Digital [Max] | 5.5 V |
| Voltage - Supply, Digital [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1170.56 | |
Description
General part information
5962-8871903 Series
12 Bit Digital to Analog Converter 4 44-CLCC (16.55x16.55)
