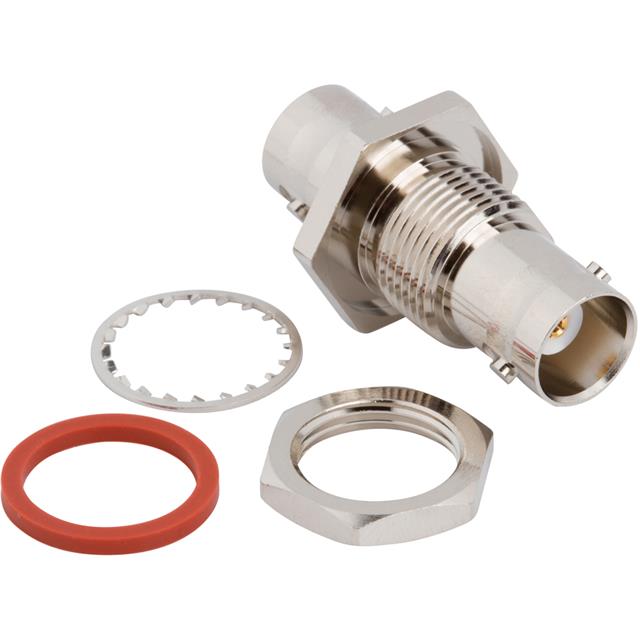

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, STRAIGHT BULKHEAD ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

AD-BNCJBNCJ-EE

Active

Amphenol RF

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, STRAIGHT BULKHEAD ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AD-BNCJBNCJ-EE

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

AD-BNCJ Series

Part	Center Contact Material	Body Finish	Center Gender	Dielectric Material	Ingress Protection	Adapter Type	Impedance	Mounting Feature	Style	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Convert To (Adapter End)	Convert From (Adapter End)	Body Material	Mating Cycles	Frequency - Max [Max]	Conversion Type	Adapter Series	Fastening Type	Mounting Type
Amphenol RF AD-BNCJBNCJ-EE	Beryllium Copper	Nickel	Female to Female	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Jack to Jack	50 Ohms	Bulkhead	Straight	85 °C	-40 °C	Gold	BNC Jack Female Socket	BNC Jack Female Socket	Brass	500	12 GHz	Same Series	BNC to BNC	Bayonet Lock
Amphenol RF AD-BNCJMCXP-12G	Beryllium Copper	Nickel		Polytetrafluoroethylene (PTFE)		Plug to Jack	75 Ohms		Straight	85 °C	-40 °C	Gold	Male Pin MCX Plug	BNC Jack Female Socket	Beryllium Copper Brass	500	12 GHz	Between Series		Bayonet Lock Snap-On	Free Hanging (In-Line)
Amphenol RF AD-BNCJMCXJ12G1	Beryllium Copper	Nickel	Female to Female	Polytetrafluoroethylene (PTFE)		Jack to Jack	75 Ohms		Straight	85 °C	-40 °C	Gold	Female Socket MCX Jack	BNC Jack Female Socket	Brass	500	12 GHz	Between Series		Bayonet Lock Snap-On	Free Hanging (In-Line)
Amphenol RF AD-BNCJBNCJ-4	Beryllium Copper	Nickel	Female to Female	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Jack to Jack	50 Ohms	Bulkhead	Straight	85 °C	-40 °C	Gold	BNC Jack Female Socket	BNC Jack Female Socket	Brass	500	12 GHz	Same Series	BNC to BNC	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 39.49
		10	$ 34.58
		25	$ 33.09
		50	$ 32.02
		100	$ 30.95
		250	$ 29.24
Newark	Each	1	$ 46.58
		5	$ 45.08
		10	$ 42.72
		25	$ 41.21
		50	$ 38.85
		100	$ 37.78
		250	$ 36.06

Description

General part information

AD-BNCJ Series

AD-BNCJBNCJ-EE is a BNC jack to BNC jack adapter. It is exposed to concentrated salt spray and tested for the corrosion of the base material for a full 720 hours to ensure reliable performance. Typical applications are marine GPS, remote base station, environmental measurement equipment, search and rescue communication.
