AT89LP828-JU

Active

Atmel

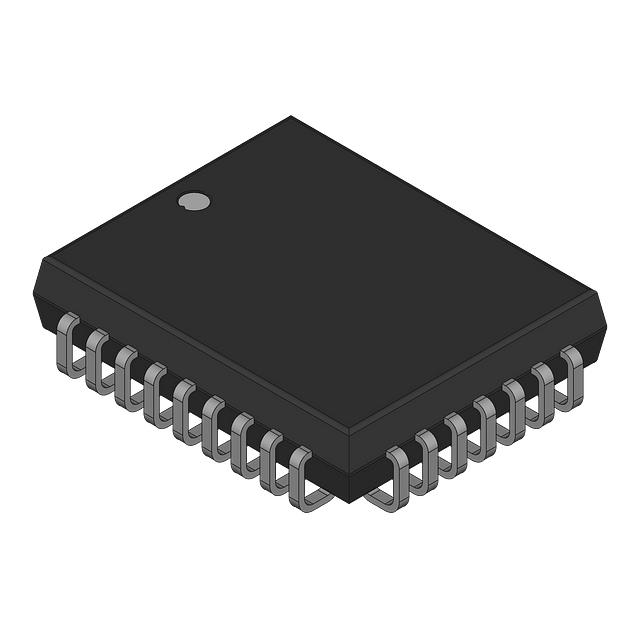

IC MCU 8BIT 8KB FLASH 32PLCC

Search across all available documentation for this part.

Active

Atmel

IC MCU 8BIT 8KB FLASH 32PLCC

Technical Specifications

Parameters and characteristics for this part

Part	Core Size	Speed	Program Memory Type	RAM Size	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Connectivity	Number of I/O	Oscillator Type	Core Processor	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case	Package / Case
Atmel AT89LP828-20AU	8-Bit	20 MHz	FLASH	768 x 8	32-TQFP	85 °C	-40 °C	32-TQFP (7x7)	2.4 V	5.5 V	SPI UART/USART	30 I/O	Internal	8051	Surface Mount
Atmel AT89LP828-JU	8-Bit	20 MHz	FLASH	768 x 8	32-LCC (J-Lead)	85 °C	-40 °C	32-PLCC	2.4 V	5.5 V	SPI UART/USART	30 I/O	Internal	8051	Surface Mount	11.43	13.97
Atmel AT89LP828-20PU	8-Bit	20 MHz	FLASH	768 x 8	28-DIP	85 °C	-40 °C	28-PDIP	2.4 V	5.5 V	SPI UART/USART	30 I/O	Internal	8051	Through Hole			0.3 in	7.62 mm
Atmel AT89LP828-20JU	8-Bit	20 MHz	FLASH	768 x 8	32-LCC (J-Lead)	85 °C	-40 °C	32-PLCC	2.4 V	5.5 V	SPI UART/USART	30 I/O	Internal	8051	Surface Mount	11.43	13.97
Atmel AT89LP828-20MH	8-Bit	20 MHz	FLASH	768 x 8	32-VFQFN Exposed Pad	85 °C	-40 °C	32-VQFN (5x5)	2.4 V	5.5 V	SPI UART/USART	30 I/O	Internal	8051	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	129	$ 2.33

General part information

8051 89LP Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH 32-PLCC (13.97x11.43)

Technical documentation and resources

No documents available
