B13B-XH-A

Active

JST Sales America Inc.

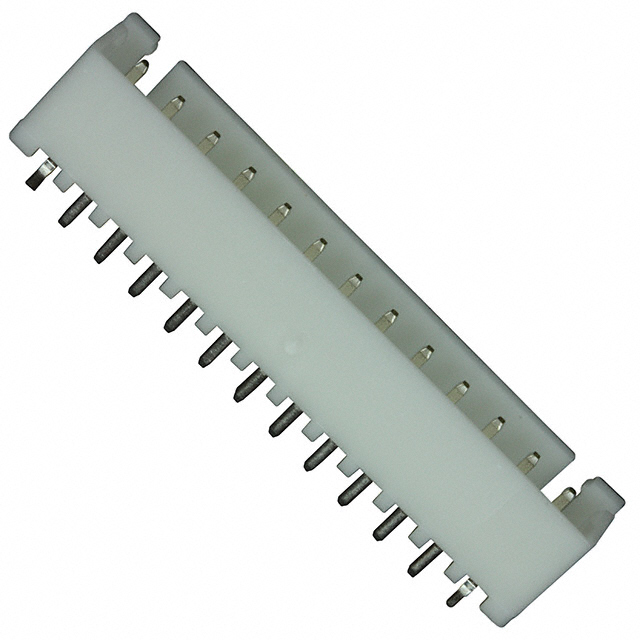

CONN HEADER VERT 13POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 13POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B13B-XH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	9.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Type	Termination	Insulation Color	Current Rating (Amps)	Shrouding	Voltage Rating	Fastening Type	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights	Contact Material	Insulation Material	Contact Finish - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Mounting Type	Style
JST Sales America Inc. B13B-XH-A	0.134 in	3.4 mm	All	Male Pin	Press-Fit Solder	Natural	3 A	Shrouded - 4 Wall	250 VDC	Detent Lock	7 mm	0.276 in	9.8 mm	Brass	Polyamide (PA66) Nylon 6/6	Tin	Square	2.5 mm	0.098 in	1	Header	-25 °C	85 °C	13	UL94 V-0	Through Hole	Board to Cable/Wire
JST Sales America Inc. B13B-XH-2(LF)(SN)	0.134 in	3.4 mm	All	Male Pin	Press-Fit Solder	Natural	3 A	Shrouded - 4 Wall	250 VDC	Detent Lock	7 mm	0.276 in		Brass	Polyamide (PA66) Nylon 6/6 Glass Filled	Tin	Square	2.5 mm	0.098 in	1	Header	-25 °C	85 °C	13	UL94 V-0	Through Hole	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 13 position 0.098" (2.50mm)
