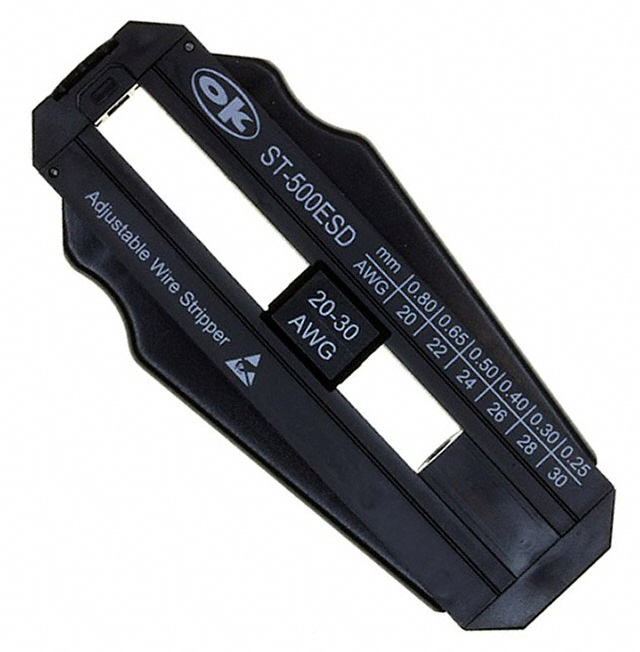

ST-500ESD - ST-500ESD

ST-500ESD

Active
OK INDUSTRIES

WIRE STRIPPER, ESD-SAFE, 30-20 AWG CAPACITY WIRES, 50.8MM LENGTHS

Deep-Dive with AI

Search across all available documentation for this part.

ST-500ESD - ST-500ESD

ST-500ESD

Active
OK INDUSTRIES

WIRE STRIPPER, ESD-SAFE, 30-20 AWG CAPACITY WIRES, 50.8MM LENGTHS

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationST-500ESD
Cable Type [Max]30 AWG
Cable Type [Min]20 AWG
FeaturesESD Safe
TypeSingle Level Stripper, Adjustable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyRetail Package 1$ 58.30
5$ 54.95
NewarkEach 1$ 54.95

Description

General part information

ST-500 Series

The ST-500ESD is a Wire Stripper features a static-dissipative housing (ESD safe). This precision wire stripper features an adjustment dial that allows the operator to select one of six different settings. A calibrated wire stop can then be adjusted for the desired insulation strip length. In a single motion, the operator squeezes and pulls the tool. This action engages four specially hardened blades to cleanly cut the wire insulation while the pulling motion breaks the insulation/conductor bond. Calibrated wire stop adjustable from 0.039 to 2-inch (1 to 50.8mm).
