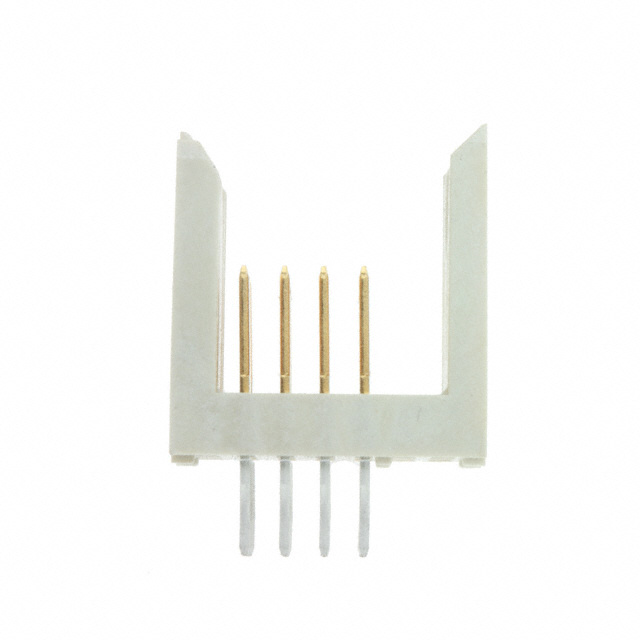

MP2-HP08-41P1-KR

Active

3M (TC)

CONN HEADER BLADE PWR 8POS PCB

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER BLADE PWR 8POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-HP08-41P1-KR

Color	Beige
Connector Style	Blade Power
Connector Type	Male Blades, Header
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	8 Power
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.236 in
Pitch [x]	6 mm
Termination	Press-Fit

Part	Color	Mounting Type	Pitch [x]	Pitch [x]	Termination	Connector Usage	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Connector Type	Number of Positions	Number of Positions Loaded	Material Flammability Rating	Connector Style
3M (TC) MP2-HP08-41P1-KR	Beige	Through Hole	0.236 in	6 mm	Press-Fit	Backplane	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	8 Power	Header Male Blades	8	All	UL94 V-0	Blade Power

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Connector Header, Male Blades Through Hole Beige Blade Power
