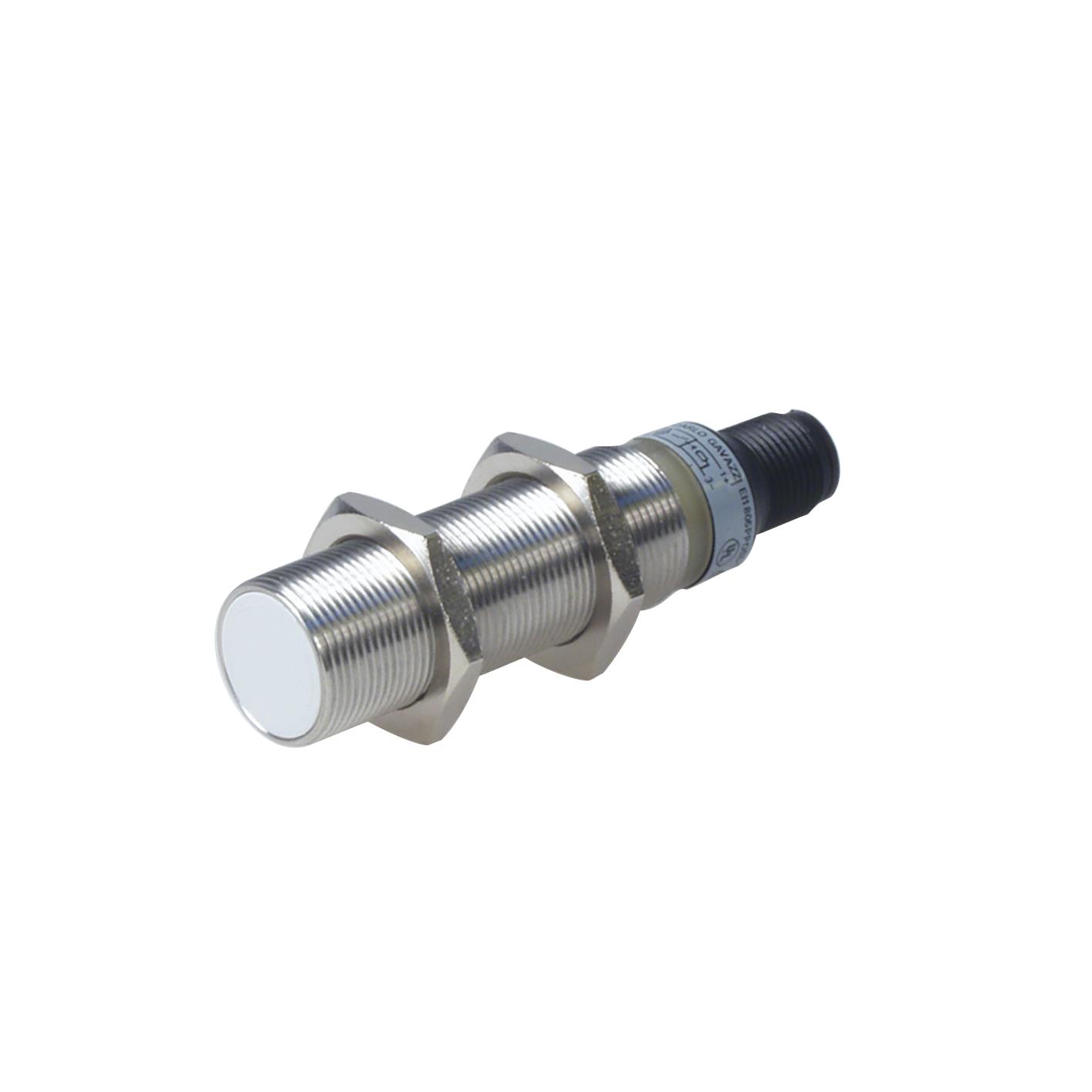

EI1808PPOSL-1

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 8MM CYLIND

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 8MM CYLIND

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Output Type	Ingress Protection	Termination Style	Material - Body	Sensing Distance	Sensing Distance	Response Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Shielding
CARLO GAVAZZI EI1808TBCSL	Inductive	SCR-NC 2-Wire	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Cable Leads	Stainless Steel	0.315 in	8 mm	25 Hz	70 °C	-25 °C	LED	20 VAC	250 VAC	Cylinder Threaded - M18	Unshielded
CARLO GAVAZZI EI1808PPOSL-1	Inductive	PNP-NO 3-Wire	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Connector	Stainless Steel	0.315 in	8 mm	400 Hz	70 °C	-25 °C	LED	10 VDC	40 VDC	Cylinder Threaded - M18	Unshielded
CARLO GAVAZZI EI1808PPCSS	Inductive	PNP-NC 3-Wire	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Cable Leads	Stainless Steel	0.315 in	8 mm	400 Hz	70 °C	-25 °C	LED	10 VDC	40 VDC	Cylinder Threaded - M18	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 88.27

General part information

SENSOR PROX INDUCTIVE 8MM CYLIND

Technical documentation and resources
