NL17SZ374DBVT1G
ActiveON Semiconductor
SINGLE D-TYPE F/F 3-STATE/ REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NL17SZ374DBVT1G
ActiveON Semiconductor
SINGLE D-TYPE F/F 3-STATE/ REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NL17SZ374DBVT1G |
|---|---|
| Current - Output High, Low [x] | 32 mA |
| Current - Output High, Low [y] | 32 mA |
| Current - Quiescent (Iq) | 1 µA |
| Function | Standard |
| Input Capacitance | 4 pF |
| Max Propagation Delay @ V, Max CL | 4 ns |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Complementary |

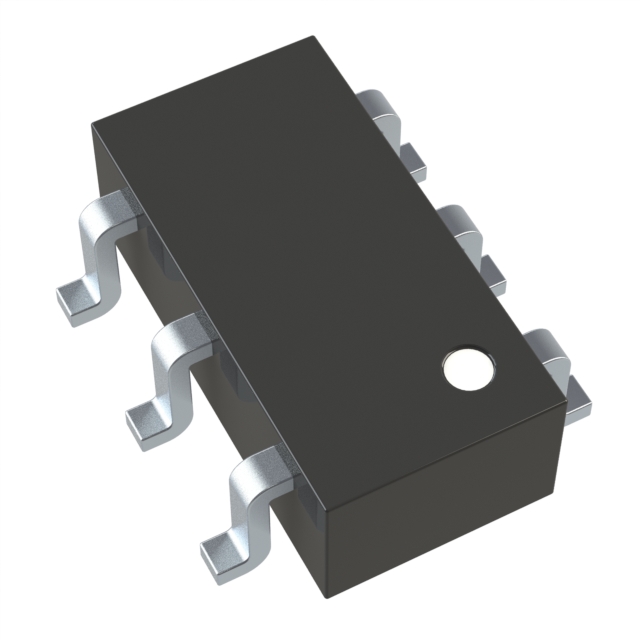

| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | SC-74 |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.15 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.18 | |||
| 25 | $ 0.15 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.05 | |||
| 9000 | $ 0.05 | |||
| 15000 | $ 0.05 | |||
| 21000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
| Newark | Each | 2500 | $ 0.04 | |
| 10000 | $ 0.04 | |||
| 25000 | $ 0.04 | |||
Description
General part information
17SZ374 Series
Flip Flop 1 Element D-Type 1 Bit Positive Edge SC-74, SOT-457
