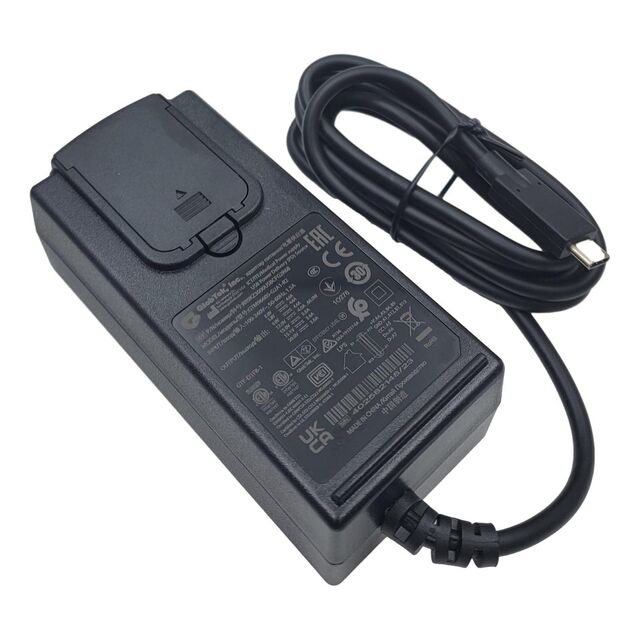

RR9KZ3000USBCFG2R6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL ADPT 5V-20V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL ADPT 5V-20V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9KZ3000USBCFG2R6B

Applications	ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max)	4.4 A, 4.6 A, 3 A, 4 A, 3.6 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop, Wall Mount
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Connector	USB C Power Delivery (PD)
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	60601-1-2, 60601-1-11, 62368-1, 1310, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V, 20 V, 15 VDC, 9 V, 5.8 V, 5 V

Part	No Load Power Consumption [Max]	Applications	Current - Output (Max)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Form	Output Connector	Power (Watts)	Efficiency	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Region Utilized	Cord Length	Cord Length	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Input Type	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]
GlobTek, Inc. RR9KZ3000USBCFG2R6B	75 mW	ITE (Commercial) Medical	3 A 3.6 A 4 A 4.4 A 4.6 A	-10 °C	50 °C	Desktop Wall Mount	USB C Power Delivery (PD)	60 W	CoC Tier 2 Level VI	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	International	1.5 m	59 in	1310 60601-1-11 60601-1-2 60950-1 62368-1	90 VAC	264 VAC	IEC 320-C8	Cord	5 V 5.8 V 9 V 12 V 15 VDC 20 V
GlobTek, Inc. RR9KZ3000USBCPPS(R6B)	75 mW	ITE (Commercial) Medical				Desktop Wall Mount	USB C	60 W	CoC Tier 1 Level VI	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	International	1.5 m	59 in	60601-1 60950-1 62368-1	90 VAC	264 VAC	IEC 320-C8	Multi-Blade (Sold Separately)		-10 °C	40 °C	20 V	3.6 V	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V, 5.8V, 9V, 12V, 15V, 20V 60 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources
